Cabling front USB and video connector
The internal routing and connectors for the front USB and video cables.
The following notes describe additional information you must consider when you
install or remove the front USB and video cables:
v To remove the front USB and video cables, slightly press the cables toward the
chassis; then, pull to remove the cables from the connectors on the system board.
Pulling the cable out of the connector by excessive force might cause damage to
the cable or connector.
v To connect the front USB and video cables on the system board, press evenly on
the cables. Pressing on one side of the cable might cause damage to the cable or
connector.

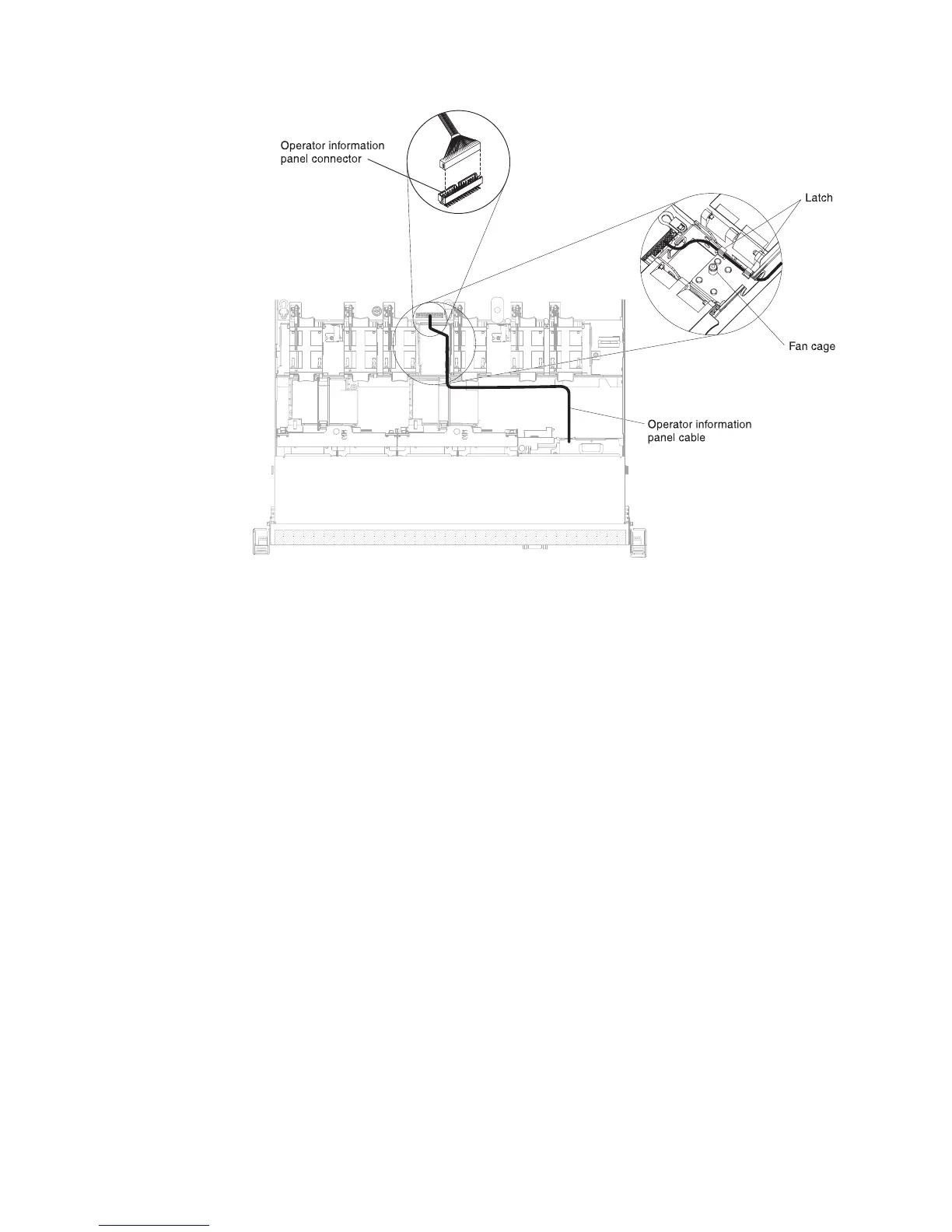

Figure 104. Operator information panel cable connection
206 IBM System x3550 M4 Type 7914: Installation and Service Guide
