Replacing the operator information panel assembly
Use this information to replace the operator information panel assembly.
About this task
To install the operator information panel, complete the following steps.
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables, if necessary.
3. Remove the cover (see “Removing the cover” on page 36).
4. From the front of the server, slide the operator information panel into the
server until it clicks into place.
5. Inside the server, connect the cable to the rear of the operator information panel
assembly. The following illustration shows the cable routing for the operator
information panel.

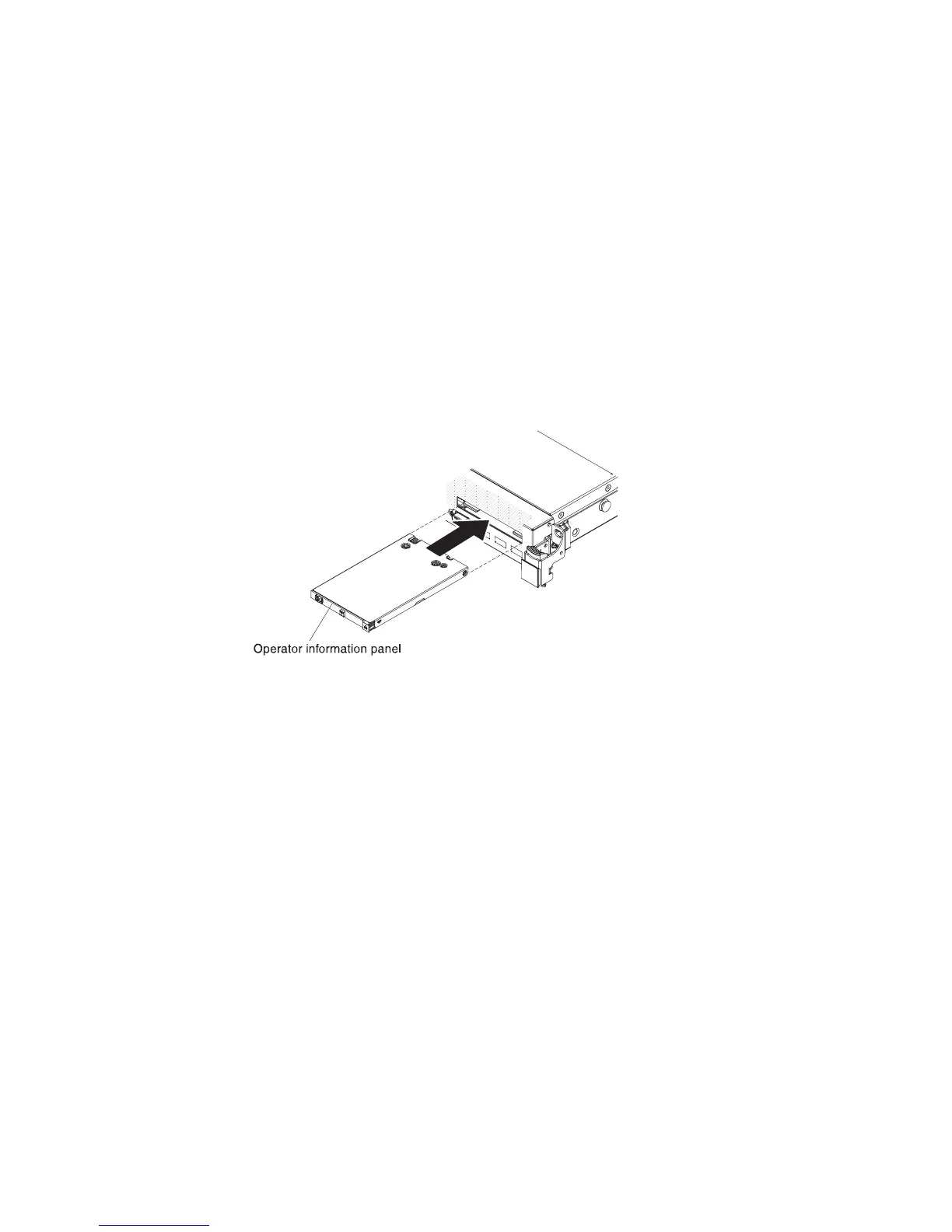

Figure 211. Operator information panel installation
308 IBM System x3550 M4 Type 7914: Installation and Service Guide
