Removing a RAID adapter battery or flash power module holder
Use this information to remove a RAID adapter battery or flash power module
holder.
About this task
If a RAID adapter battery or flash power module is installed remotely near the fan
cage and you need to replace it, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect all power cords;
then, remove the cover (see “Removing the cover” on page 36).
3. Remove the RAID adapter battery or flash power module (see “Removing a
RAID adapter battery or flash power module” on page 212).
4. Loosen the two screws from the system tray.
5. Lift the holder up to remove it from the system tray.
Results
If you are instructed to return the RAID adapter battery or flash power module
holder, follow all packaging instructions, and use any packaging materials for
shipping that are supplied to you.

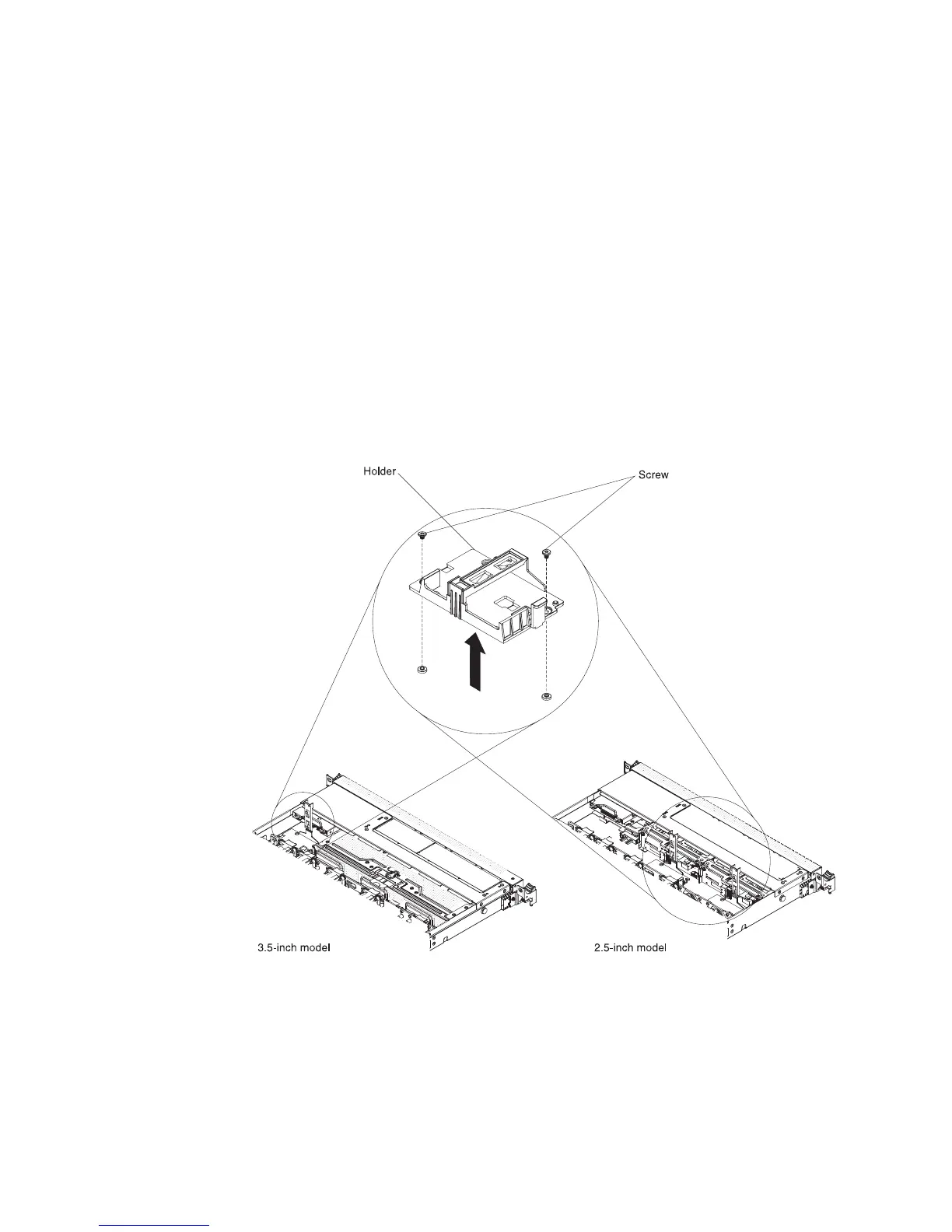

Figure 113. RAID adapter battery or flash power module holder removal
216 IBM System x3550 M4 Type 7914: Installation and Service Guide
