Replacing the air baffle
Use this information to replace the air baffle.
About this task
To install the air baffle, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables.
3. Remove the cover (see “Removing the cover” on page 36).
4. Align the air baffle pins with the baffle pin holes on both sides of the chassis;
then, lower the air baffle into the server. Press the air baffle down until it is
securely seated.
Note: Close the retaining clip on each end of the DIMM connector before
installing the air baffle for proper cooling.
5. Reinstall the cover (see “Replacing the cover” on page 209).
6. Slide the server into the rack.
7. Reconnect the power cords and any cables that you removed.
8. Turn on the peripheral devices and the server.

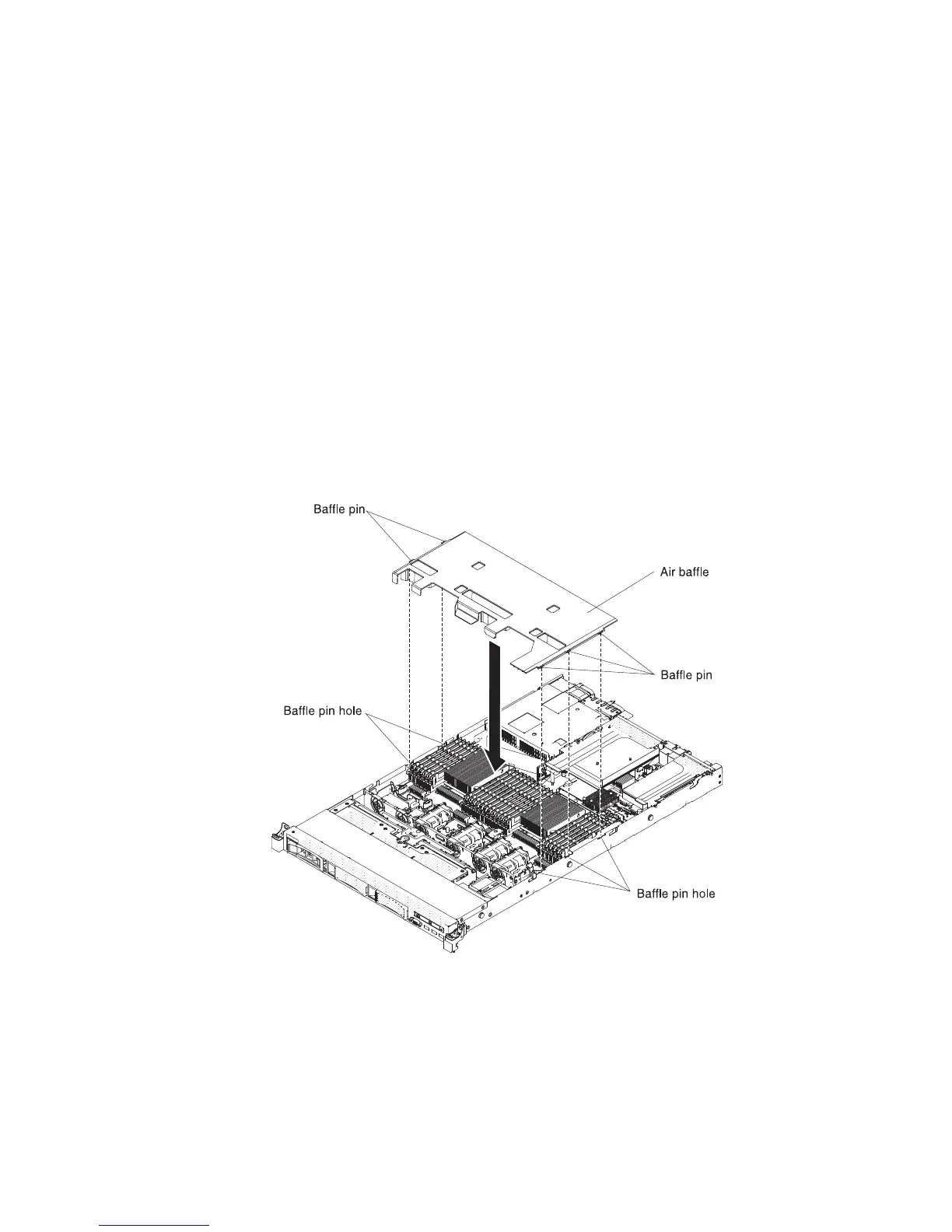

Figure 109. Air baffle installation
Chapter 6. Removing and replacing components 211
