5. Insert the fan into the fan slot in the fan assembly bracket and press it down
until it is seated correctly in the slot and the fan connector is seated correctly in
the connector on the system board.
Note: Make sure that the newly-installed fan aligns horizontally with other
correctly-seated fans for proper installation.
6. Replace the cover (see “Replacing the cover” on page 209).
7. Slide the server into the rack.
Removing a power supply
Use this information to remove a power supply.

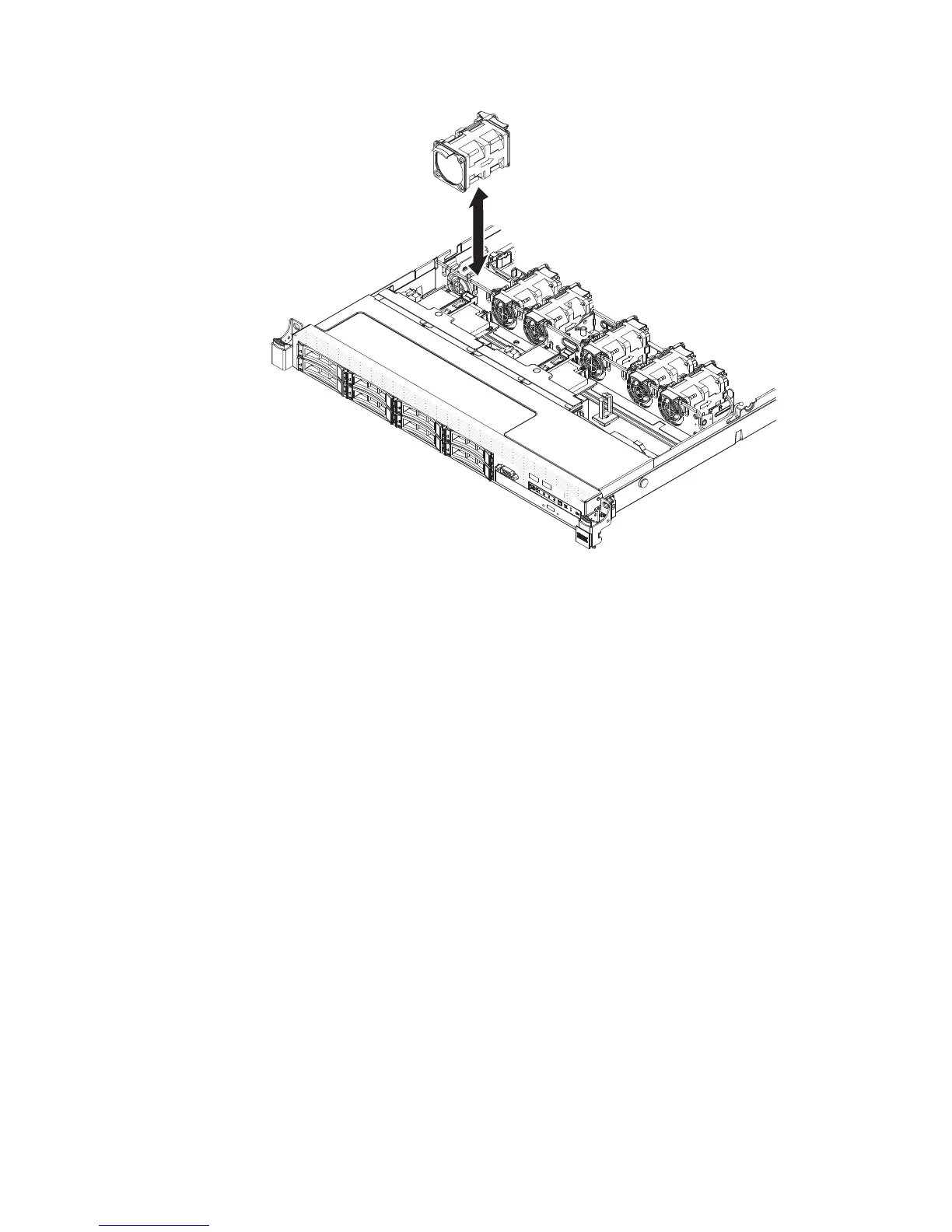

Figure 166. Fan installation
Chapter 6. Removing and replacing components 269
