IBM System x3550 M4 Installation And Service Guide

Cabling SAS/SATA ServeRAID Controller
Use this information to cable the SAS/SATA ServeRAID controller.
The following illustrations show the internal routing and connectors for the
SAS/SATA signal cables.
Notes:
1. To connect the SAS/SATA signal cables, make sure that you first connect the
signal cable, and then the power cable and configuration cable.
2. To disconnect the SAS/SATA signal cables, make sure that you first disconnect
the power cable, and then the signal cable and configuration cable.

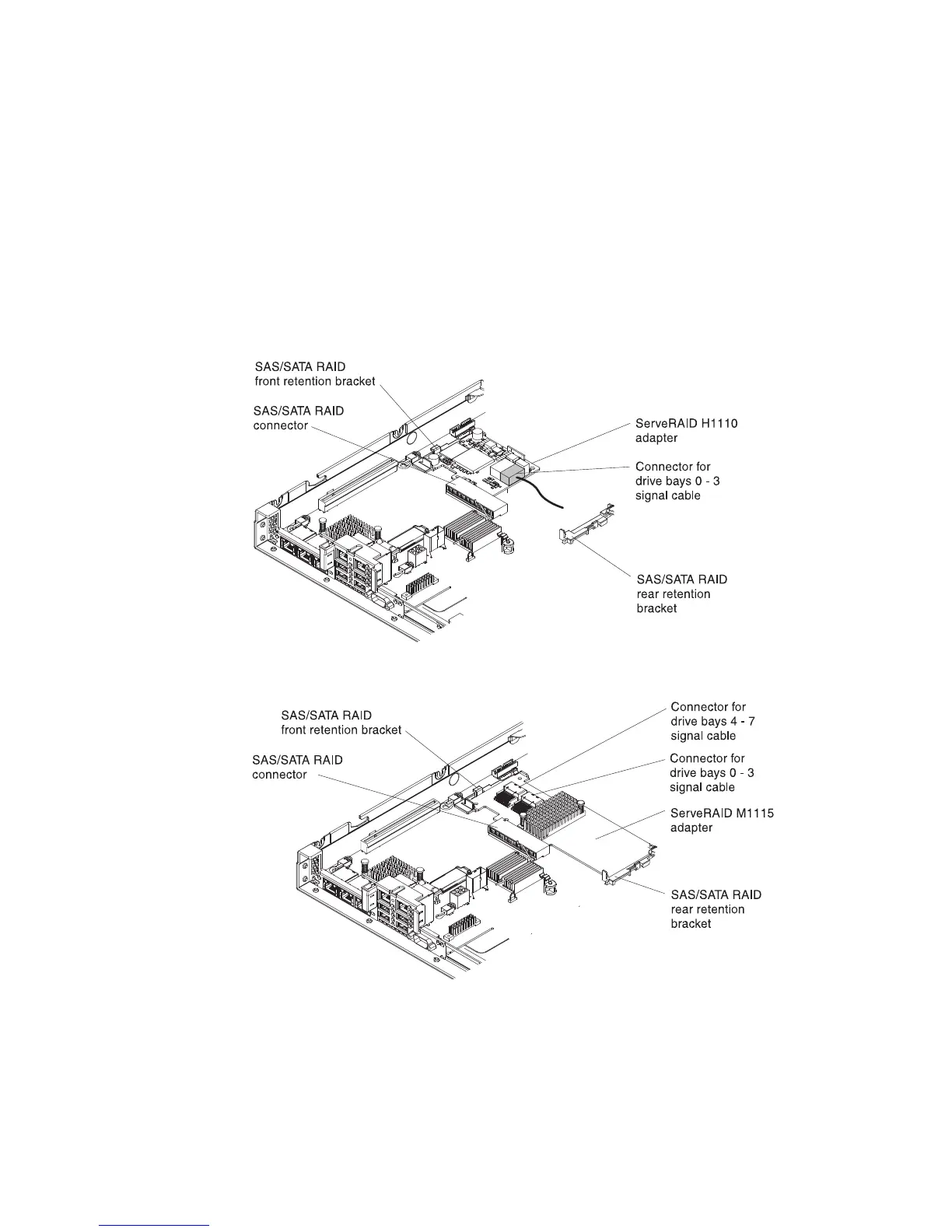

Figure 95. ServeRAID-H1110 cable connection
Figure 96. ServeRAID-M1115 cable connection
198 IBM System x3550 M4 Type 7914: Installation and Service Guide

IBM System x3550 M4 Specifications

General

Processor	Intel Xeon E5-2600 series
Chipset	Intel C600 series
Memory	Up to 768 GB
Storage	Up to 8 x 2.5" hot-swap drives
Form Factor	1U rack
Power Supply	750 W AC
Network Interface	4 x 1 GbE
RAID Support	RAID 0, 1, 10
Expansion Slots	3 x PCIe 3.0 slots
Operating System Support	Windows Server, RHEL, SUSE, VMware
Management	Integrated Management Module II (IMM2)
