Cabling backplane
Use this information to cable the backplane.
The following illustration shows the internal routing and connectors for the
3.5-inch simple-swap hard disk drives SATA signal and power cables.

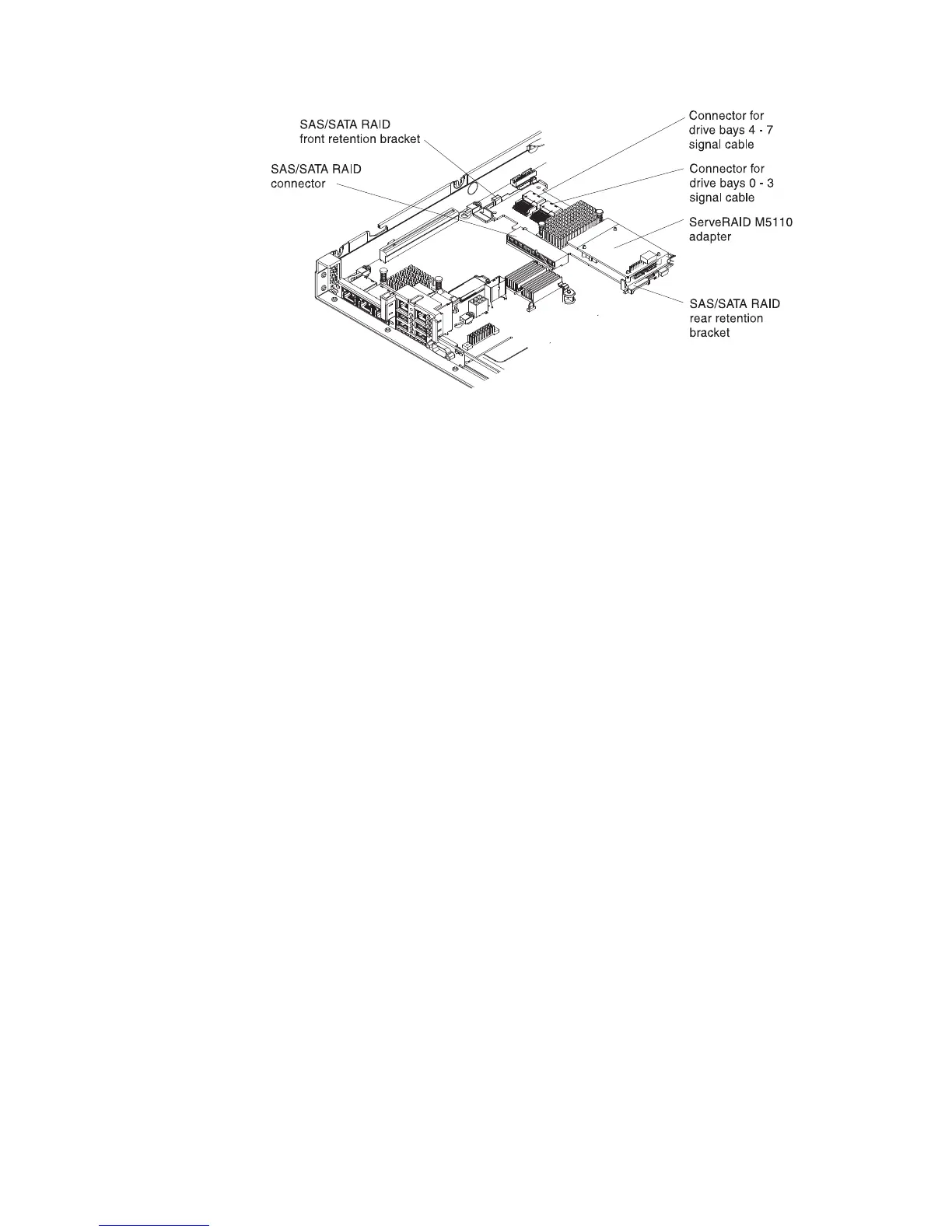

Figure 97. ServeRAID-M5110 cable connection
Chapter 6. Removing and replacing components 199
