3.5-inch simple-swap hard disk drive IDs:
The simple-swap-drive ID that is assigned to each drive is printed on the front of
the server.
The following illustration shows the location of the IDs of the hard disk drives.
The ID numbers and the drive bay numbers are the same.
Removing a DVD drive
Use this information to remove a DVD drive.
About this task
To remove an optional DVD drive, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect all power cords.
3. Remove the server cover (see “Removing the cover” on page 36).
4. Press and hold the release tab down as you push the drive from the rear to
slide it out of the bay.

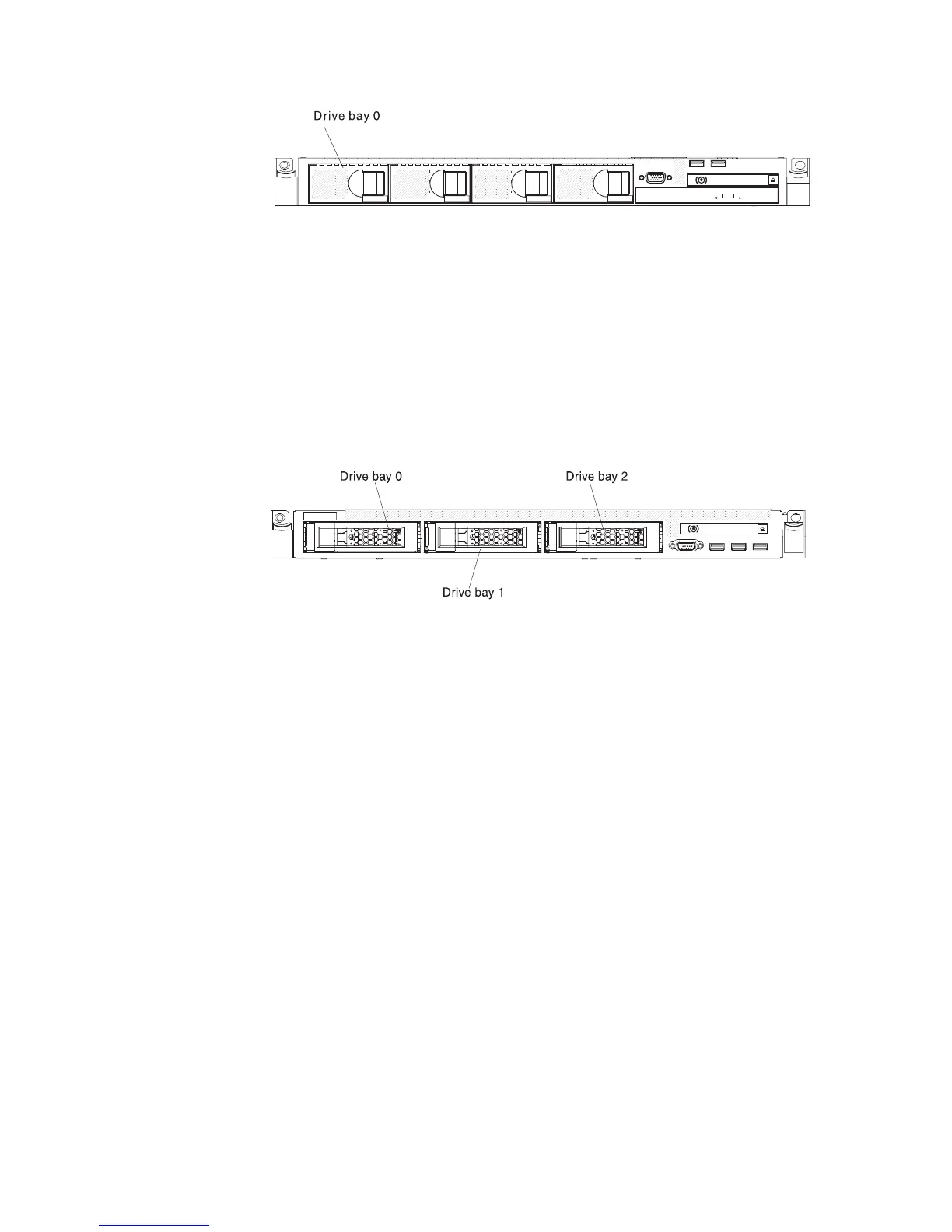

Figure 123. 2.5-inch simple-swap hard disk drive IDs
Figure 124. 3.5-inch simple-swap hard disk drive IDs
Chapter 6. Removing and replacing components 225
