Drive IDs
The drive ID that is assigned to each drive is printed on the front of the server.
The following illustrations show the locations of the IDs of the drives. The ID
numbers and the drive bay numbers are the same.
2.5-inch hot-swap hard disk drive IDs
The hot-swap-drive ID that is assigned to each drive is printed on the front of the
server.
The following illustration shows the location of the IDs of the hard disk drives.
The ID numbers and the drive bay numbers are the same.
3.5-inch hot-swap hard disk drive IDs
The hot-swap-drive ID that is assigned to each drive is printed on the front of the
server.
The following illustration shows the location of the IDs of the hard disk drives.
The ID numbers and the drive bay numbers are the same.

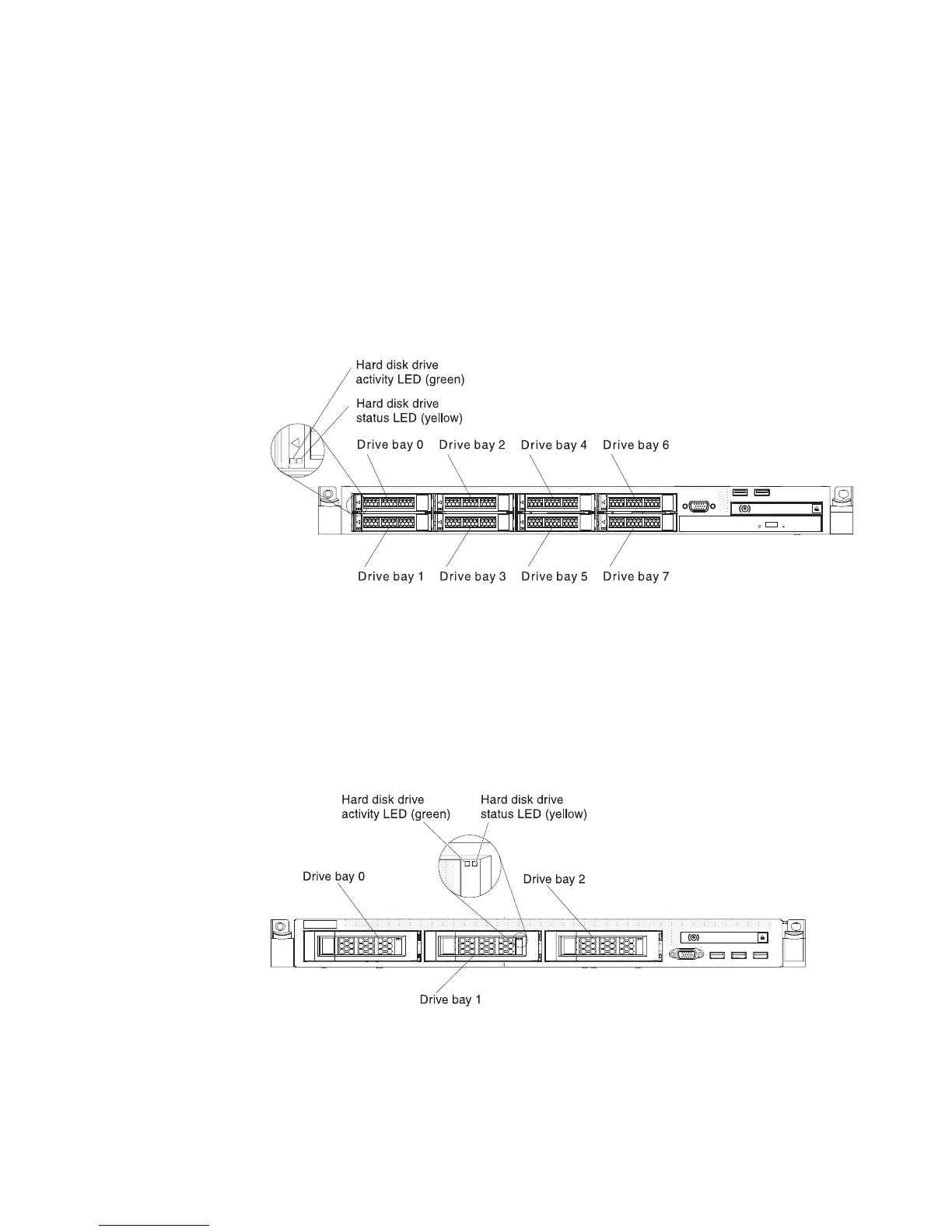

Figure 22. 2.5-inch hot-swap hard disk drive IDs
Figure 23. 3.5-inch hot-swap hard disk drive IDs
Chapter 2. Installing optional devices 39
