IBM System x3550 M4 Installation And Service Guide

Removing and replacing server components
This section provides information for removing and replacing components in the
server.
Removing and replacing structural parts
Replacement of structural parts is your responsibility. If IBM installs a structural
part at your request, you will be charged for the installation.
The illustrations in this document might differ slightly from your hardware.

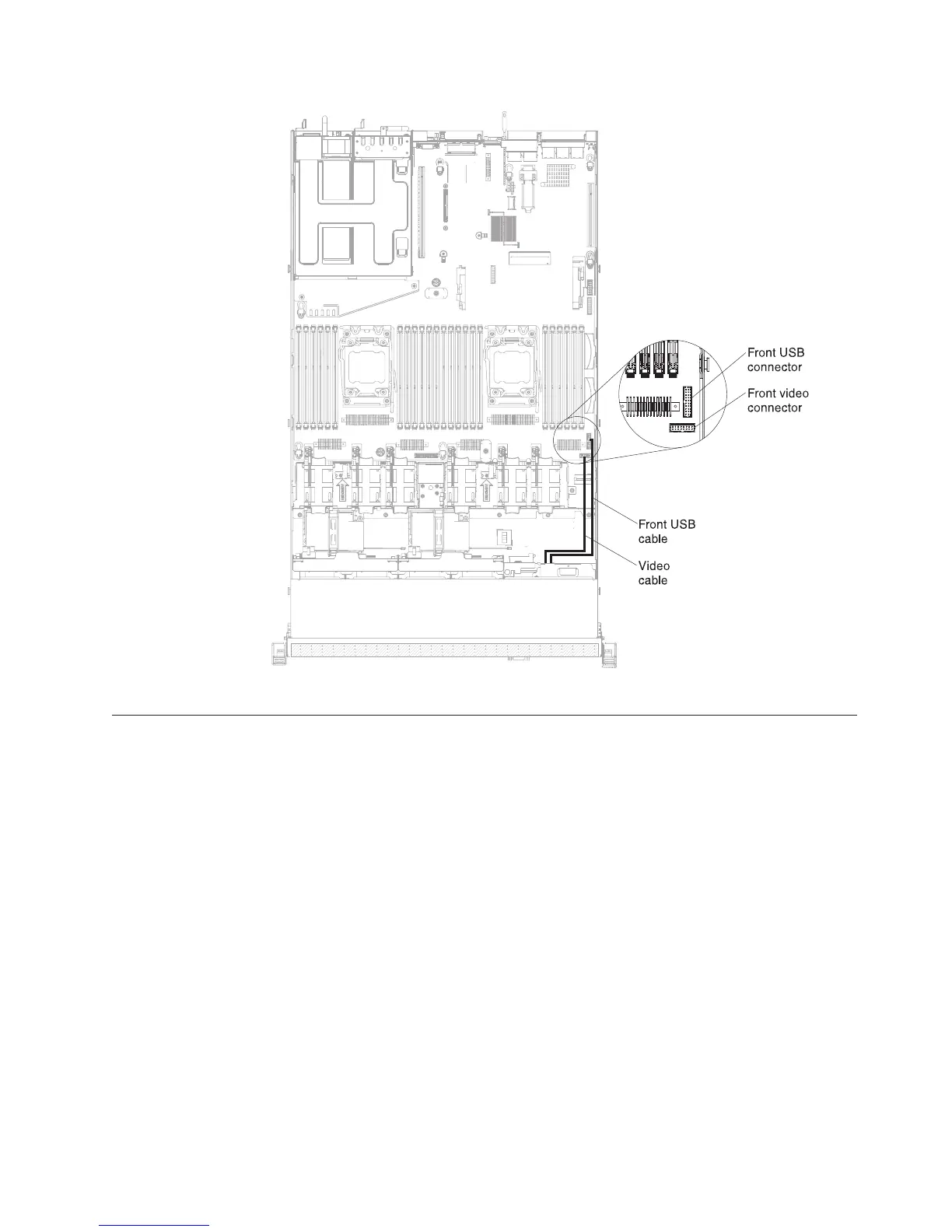

Figure 105. Front USB and video cables connection
Chapter 6. Removing and replacing components 207

IBM System x3550 M4 Specifications

General

Processor	Intel Xeon E5-2600 series
Chipset	Intel C600 series
Memory	Up to 768 GB
Storage	Up to 8 x 2.5" hot-swap drives
Form Factor	1U rack
Power Supply	750 W AC
Network Interface	4 x 1 GbE
RAID Support	RAID 0, 1, 10
Expansion Slots	3 x PCIe 3.0 slots
Operating System Support	Windows Server, RHEL, SUSE, VMware
Management	Integrated Management Module II (IMM2)
