4. Orient the fan over the fan slot in the fan assembly bracket so that the fan
connector aligns with the connector on the system board.

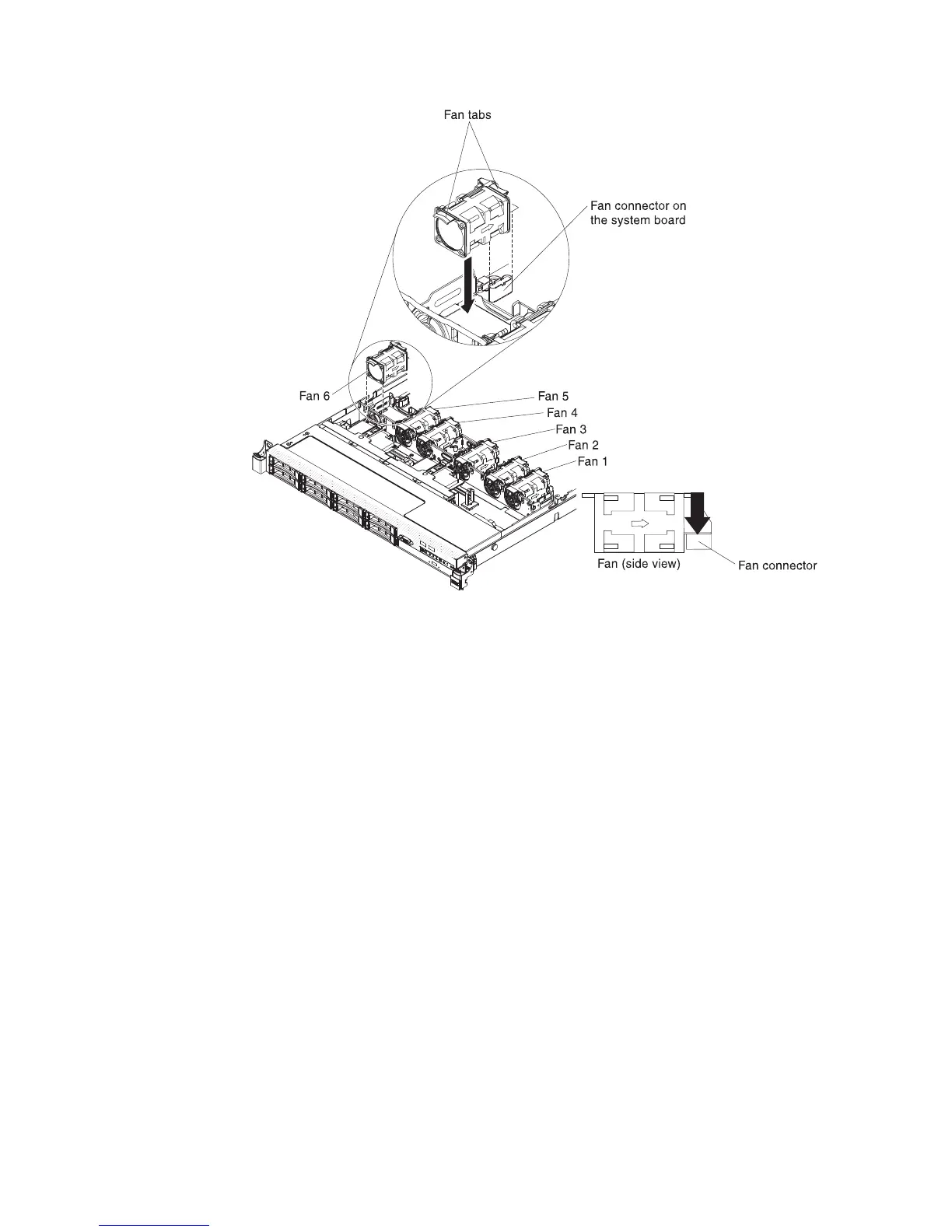

Figure 165. Fan installation
268 IBM System x3550 M4 Type 7914: Installation and Service Guide
