Attention: You must press the connector release tab in order to disconnect the
DVD drive cable from the system board. Do not disconnect the DVD drive
cable by using excessive force.
6. From the rear of the DVD drive cage, press and hold the connector latch (on
the left of the cable connector) and grasp the cable connector and slide it to the
right; then, remove the DVD drive cable from the connector on the back of the
DVD drive and set it aside.

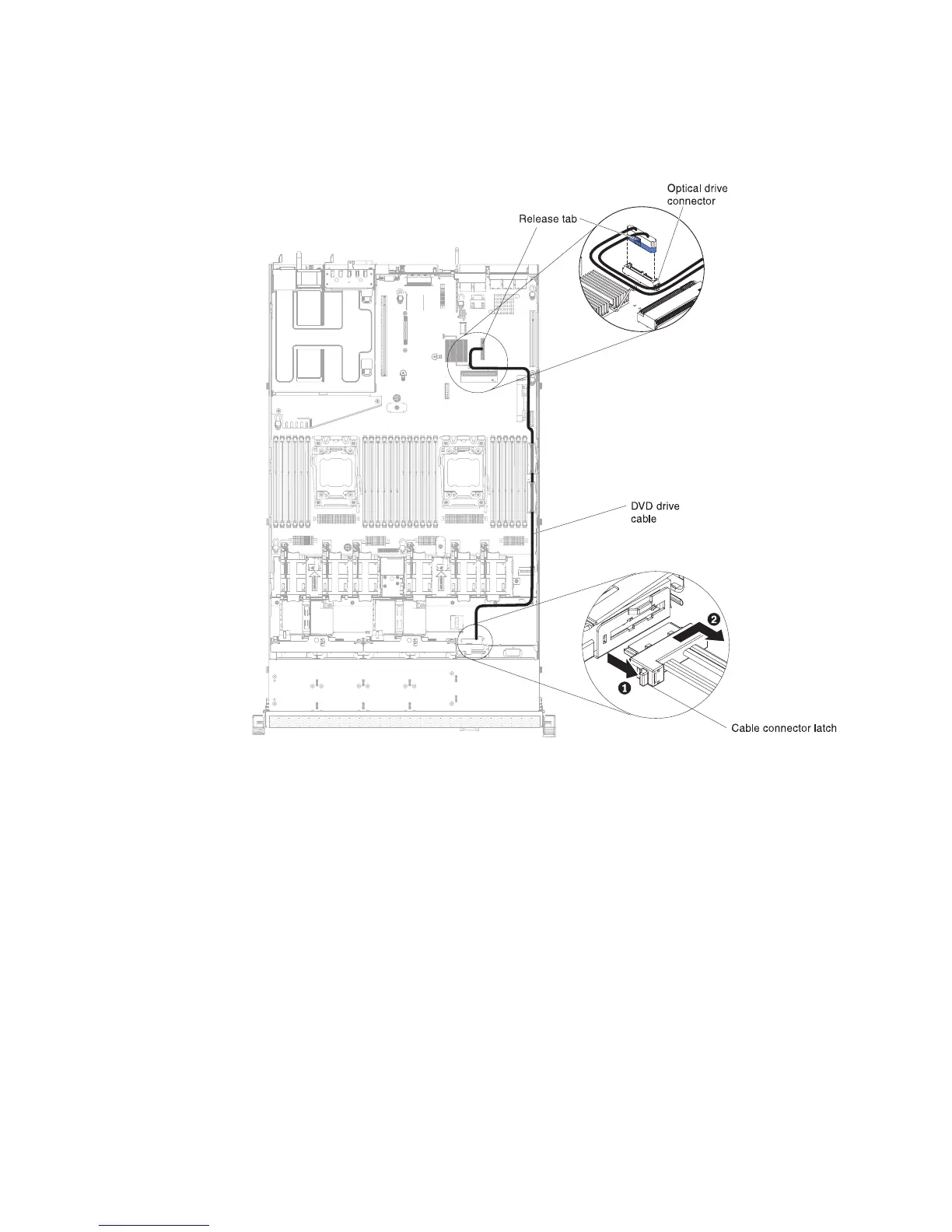

Figure 132. DVD drive cable routing
232 IBM System x3550 M4 Type 7914: Installation and Service Guide

IBM System x3550 M4 Specifications

General

Processor	Intel Xeon E5-2600 series
Chipset	Intel C600 series
Memory	Up to 768 GB
Storage	Up to 8 x 2.5" hot-swap drives
Form Factor	1U rack
Power Supply	750 W AC
Network Interface	4 x 1 GbE
RAID Support	RAID 0, 1, 10
Expansion Slots	3 x PCIe 3.0 slots
Operating System Support	Windows Server, RHEL, SUSE, VMware
Management	Integrated Management Module II (IMM2)
