IBM System x3550 M4 Installation And Service Guide

Note: The positioning of the battery or flash power module depends on the
type of the battery or flash power module that you install.
c. Connect the other end of the cable to the battery or flash power module.
d. Lower and press down on the retention clip until it snaps in place to hold
the battery or flash power module firmly in place.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 96.

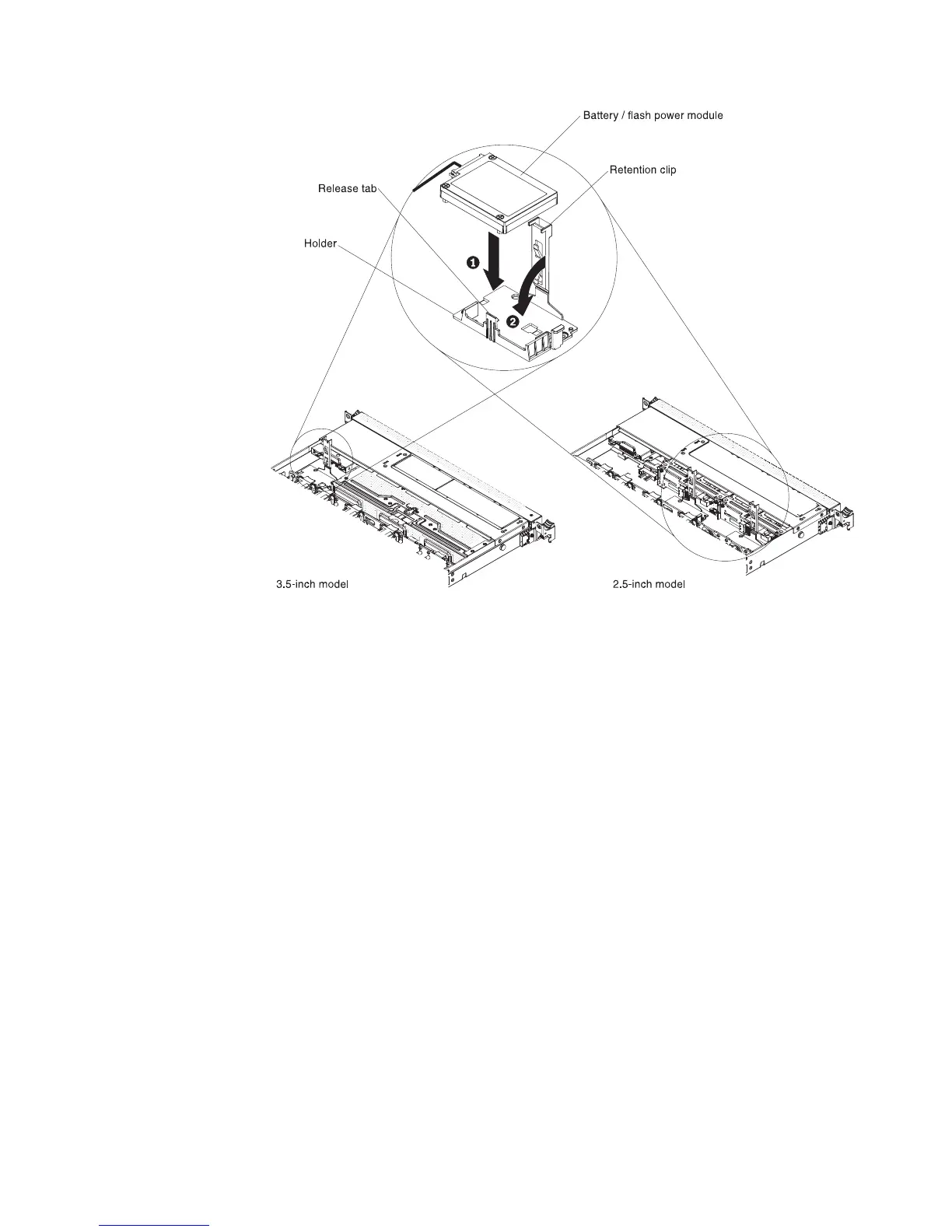

Figure 49. RAID adapter battery or flash power module installation
Chapter 2. Installing optional devices 67

IBM System x3550 M4 Specifications

General

Processor	Intel Xeon E5-2600 series
Chipset	Intel C600 series
Memory	Up to 768 GB
Storage	Up to 8 x 2.5" hot-swap drives
Form Factor	1U rack
Power Supply	750 W AC
Network Interface	4 x 1 GbE
RAID Support	RAID 0, 1, 10
Expansion Slots	3 x PCIe 3.0 slots
Operating System Support	Windows Server, RHEL, SUSE, VMware
Management	Integrated Management Module II (IMM2)
