7. Connect the other end of the power cord to a properly grounded electrical
outlet.
8. Make sure that the ac power LED and the dc power LED on the ac power
supply are lit, indicating that the power supply is operating correctly. The two
green LEDs are to the right of the power-cord connector.
9. If you are replacing a power supply with one of a different wattage in the
server, apply the new power information label provided over the existing
power information label on the server. Power supplies in the server must be
with the same power rating or wattage to ensure that the server will operate
correctly.
10. If you are adding a power supply to the server, attach the redundant power
information label that comes with this option on the server cover near the
power supplies.

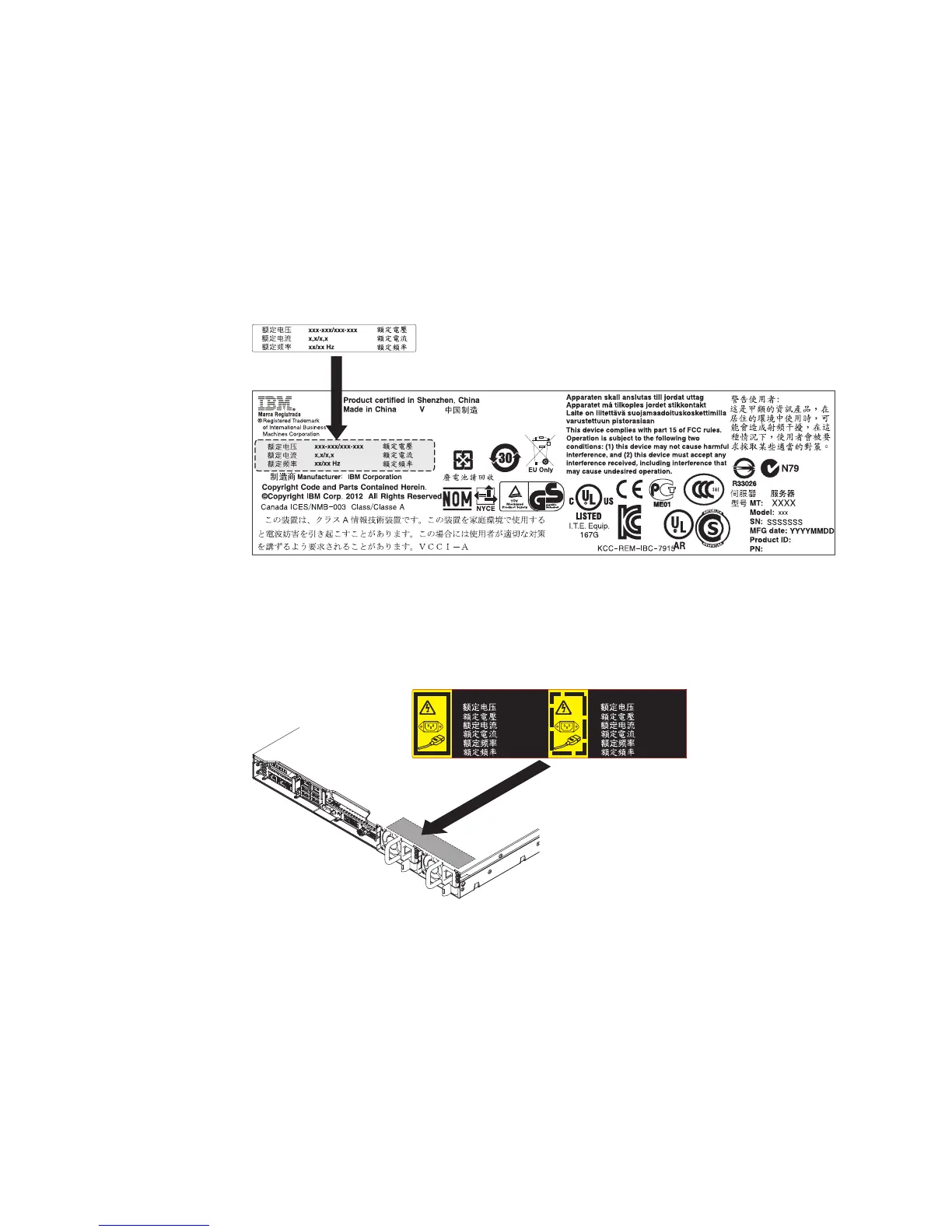

Figure 54. Power information label
1
xxx-xxx/
xxx-xxxV~
2
XXXW ~ AC
x,x/x,x A
xx/xx Hz
xxx-xxx/
xxx-xxxV~
XXXW ~ AC
x,x/x,x A
xx/xx Hz
Power supplies
Figure 55. Redundant power information label
74 IBM System x3550 M4 Type 7914: Installation and Service Guide
