5. If you are instructed to return the internal flash memory, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Replacing the internal flash memory
This topic provides instructions for how to install the replacement internal flash
memory (or hypervisor key).
About this task
To install the replacement internal flash memory (or hypervisor key), complete the
following steps:
Procedure
1. Reach through the power-supply bay and insert the internal flash memory into
the connector.
2. Pull up on the locking collar to lock the internal flash memory in place.
3. Reinstall the power supply (see “Replacing the hot-swap power supply” on
page 127) and reconnect the power cable.

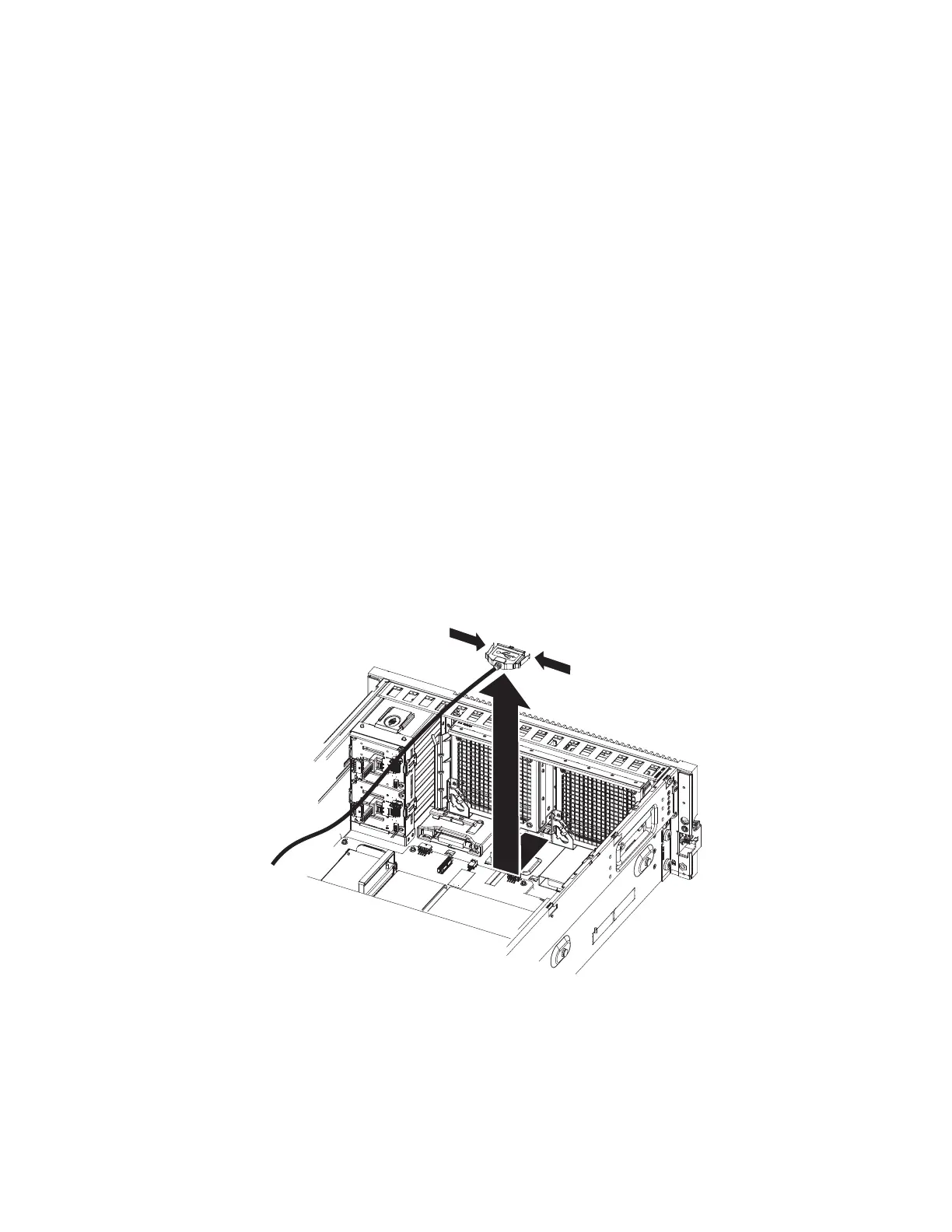

Removing the front USB assembly
This topic provides instructions for how to remove the front USB assembly.
About this task
To remove the front USB assembly, complete the following steps.
Procedure
1. Read the safety information that begins with “Safety” on page v and
“Installation guidelines” on page 97.
2. Turn off the server and peripheral devices, and disconnect the power cords
and all external cables as necessary to replace the device.
3. Remove the top cover (see “Removing and replacing consumable parts and
Tier 1 CRUs” on page 105).
Chapter 5. Removing and replacing components 141
