Replacing the memory expansion module information panel
assembly
This topic provides instructions for how to replace the memory expansion module
information panel assembly.
About this task
To replace the memory expansion module information panel assembly, complete
the following steps:
Procedure
1. Read the safety information that begins with “Safety” on page v and
“Installation guidelines” on page 97.
2. From the front of the memory expansion module system-board tray, insert the
cable end of the information panel assembly through the information panel
slot.

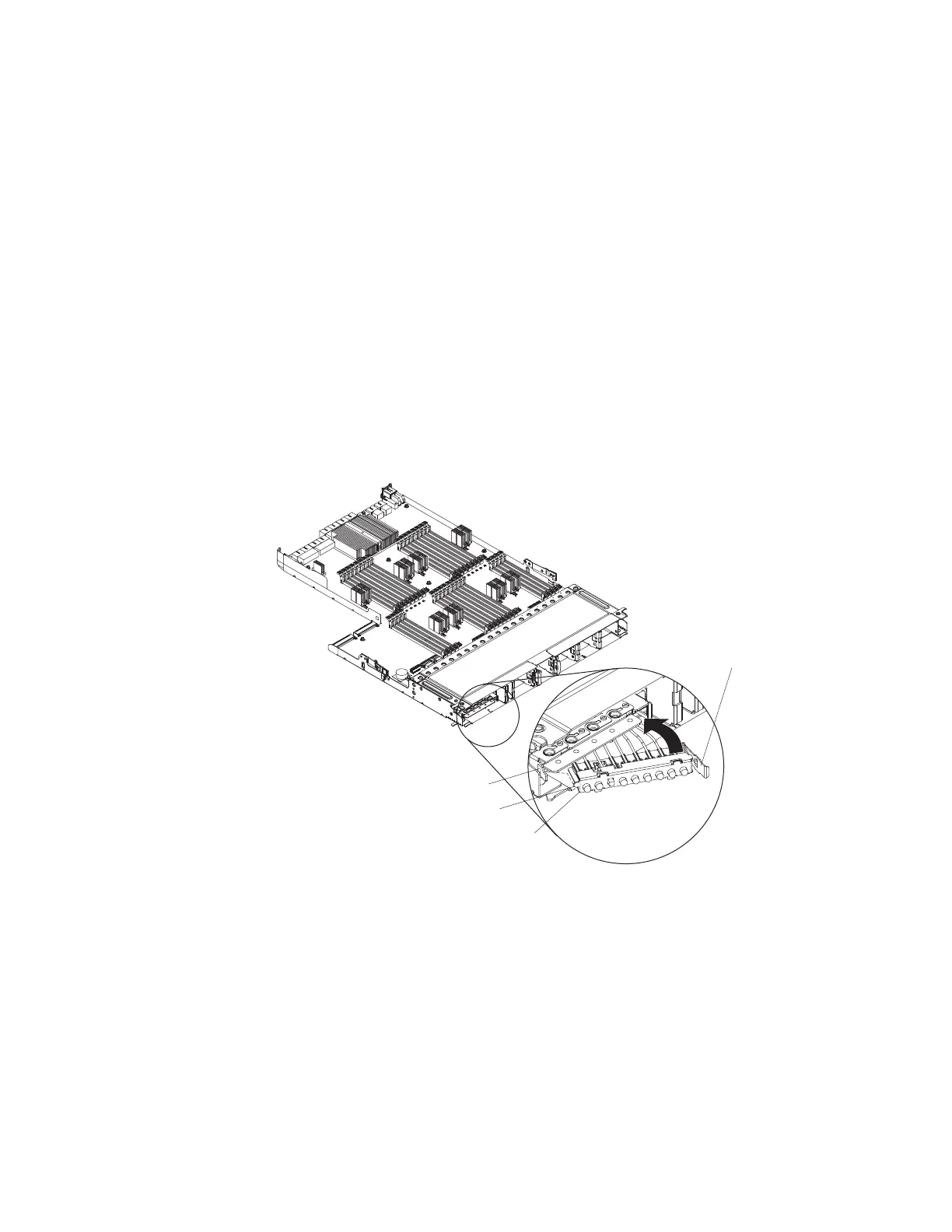

3. Insert the tab on the left side of the information panel assembly into the hole
on the system-board tray and hold the information panel assembly release latch
while you rotate the right side of the assembly toward the system-board tray.
Information
panel assembly
Ta b
Slot
Release
latch
4. Push the information panel assembly release latch in firmly to snap the release
latch into place and secure the information panel assembly.
5. Connect the information panel assembly cable to the connector on the system
board.
6. Slide the system-board tray forward until the tabs at the bottom of the handles
touch the chassis; then, close the release latches firmly (they will snap into the
locked position).
182 IBM System x3850 X5 and x3950 X5 Types 7145, 7146, 7143, and 7191: Problem Determination and Service Guide
