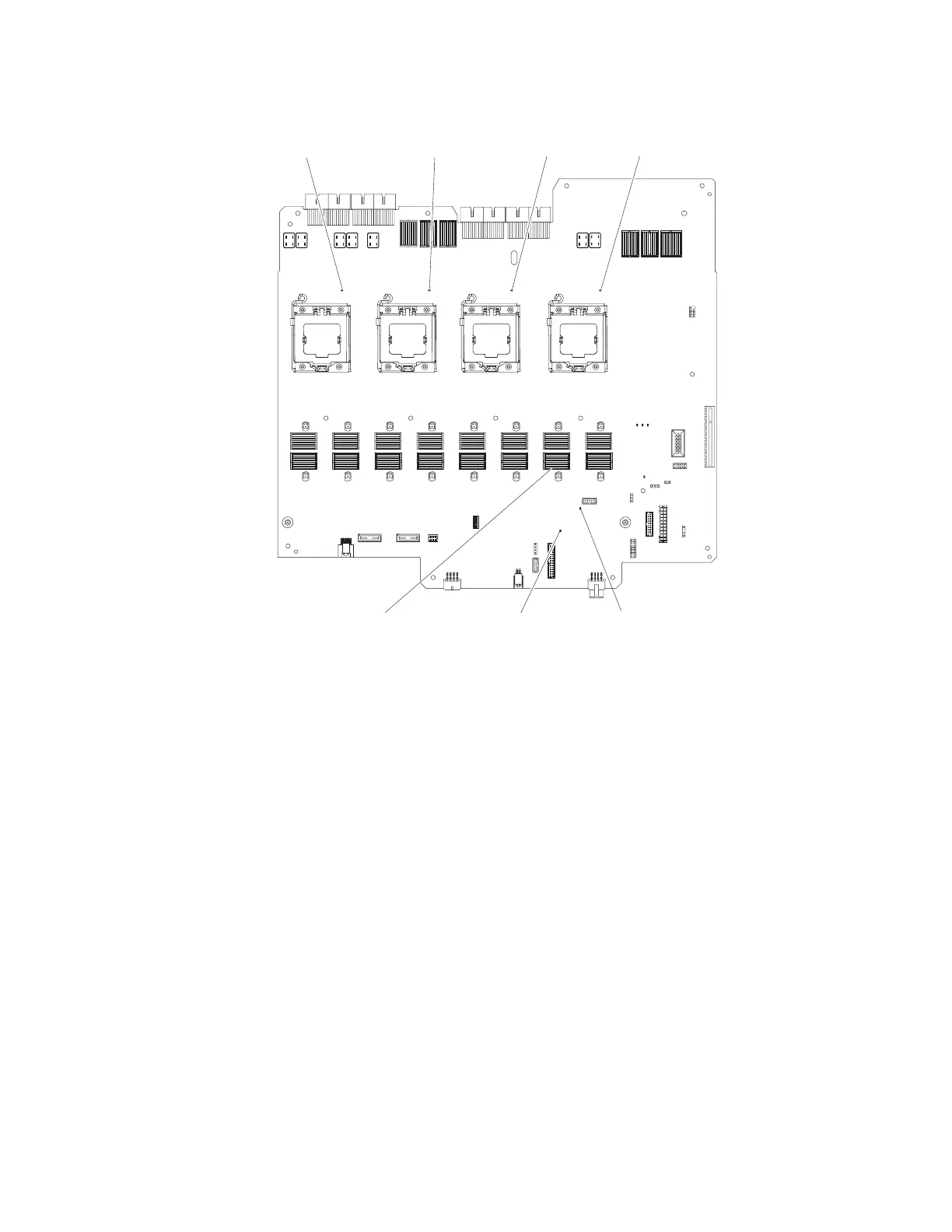

The following illustration shows the LEDs on the microprocessor board.
Microprocessor 1
error LED
Microprocessor 2
error LED
Microprocessor 3
error LED
Microprocessor 4
error LED
System management
heartbeat LED
Microprocessor
board error LED
Memory card
connector 7
Note:
a. You must remove the memory card or memory card filler from memory
card connector 7 before you can see the microprocessor board error LED.
b. You must remove the top cover bracket before you can see the
microprocessor error LEDs 1-4.
60 IBM System x3850 X5 and x3950 X5 Types 7145, 7146, 7143, and 7191: Problem Determination and Service Guide
