Icom IC-910H User Manual

o MAIN BAND INDICATOR [MAIN]
➥ Lights green while the squelch is opened or a
signal is received on the MAIN band; lights red
while transmitting on the MAIN band.
   •Whiletransmitting,theindicatoralsoshowsALCcon-
dition. Brightness increases more than usual when
the ALC function is activated.
➥ Flashes when an off-frequency signal is received
and the FM center detector is activated. (p. 28)

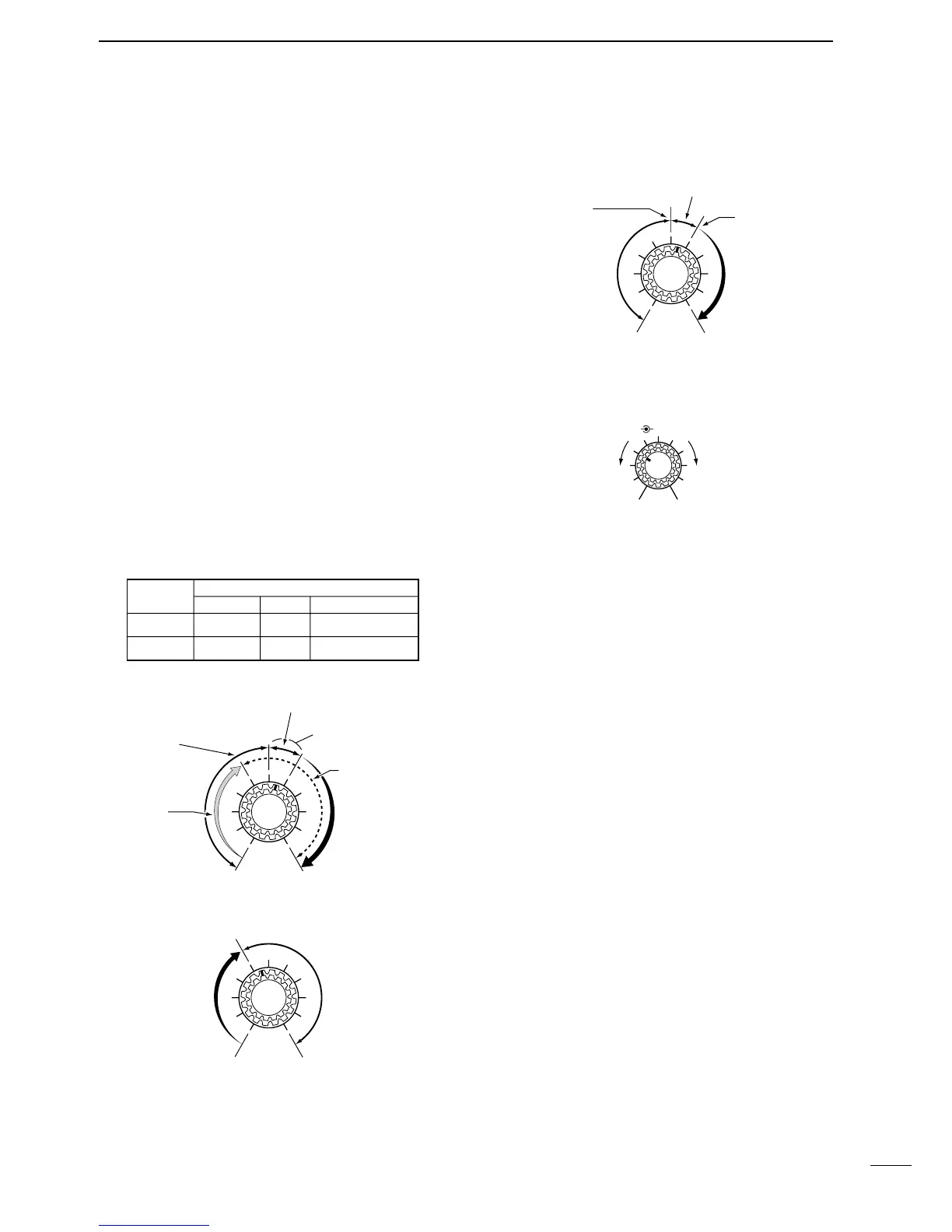

!0 RF GAIN CONTROL/SQUELCH CONTROL
[RF/SQL] (outer control)
Adjusts the RF gain and squelch threshold level for
the MAIN band. The squelch removes noise output
from the speaker (closed condition) when no signal
is received.
 •ThesquelchisparticularlyeffectiveforFM.Itisalso
available for other modes.
 •12to13o’clockpositionisrecommendedforanysetting
of the [RF/SQL] control.
 •ThesquelchthresholdpositionforSSB/CWmodecan
be set from 12 or 13 o’clock position in SSB/CW set
mode. (p. 62)
 •
The control can be set as ‘Auto’ (RF gain control in SSB
and CW; squelch control in FM) or squelch control (RF
gain is fixed at maximum) in set mode as follows. (p. 56)
MODE
SSB, CW
FM
AUTO
RF GAIN
SQL
SQL
SET MODE SETTING
SQL
SQL
RF GAIN + SQL
RF GAIN + SQL
SQL
• When setting as RF gain/squelch control
Recommended level
RF gain
adjustable
range (SSB,
CW modes)
Maximum
RF gain
S-meter
squelch
Noise squelch (FM mode)
Squelch is
open.
• When functioning as RF gain control
(Squelch is fixed open; SSB, CW only)
Minimum RF gain
Adjustable
range
Maximum
RF gain
• When functioning as squelch control
(RF gain is fixed at maximum.)
Squelch is
open.
S-meter
squelch
S-meter squelch
threshold
Noise squelch
threshold
Shallow Deep
Noise squelch
!1 AF CONTROL [AF] (inner control)
Varies the audio output level from the speaker for
the MAIN band.
AF RF/SQL
No audio output
Max. audio output
Decreases Increases
!2 SUB BAND INDICATOR [SUB]
Lights green while the squelch is opened or a sig-
nal is received on the SUB band; lights red while
transmitting in satellite operation.
!3 RF GAIN CONTROL/SQUELCH CONTROL
[RF/SQL] (outer control)
Adjusts the RF gain and squelch threshold level for
the SUB band. The squelch removes noise output
from the speaker (closed condition) when no signal
is received.
3
2
PANEL DESCRIPTION
