ADS-RR(SR)-VW01-DS
Volkswagen Beetle 2012-2015
Automotive Data Solutions Inc. © 2016
5
C
A
H
F
G
D
C
A
G
F
H D
1
10 11 12 13 14 15 16
1 2 3 4 5
6 7 8
9

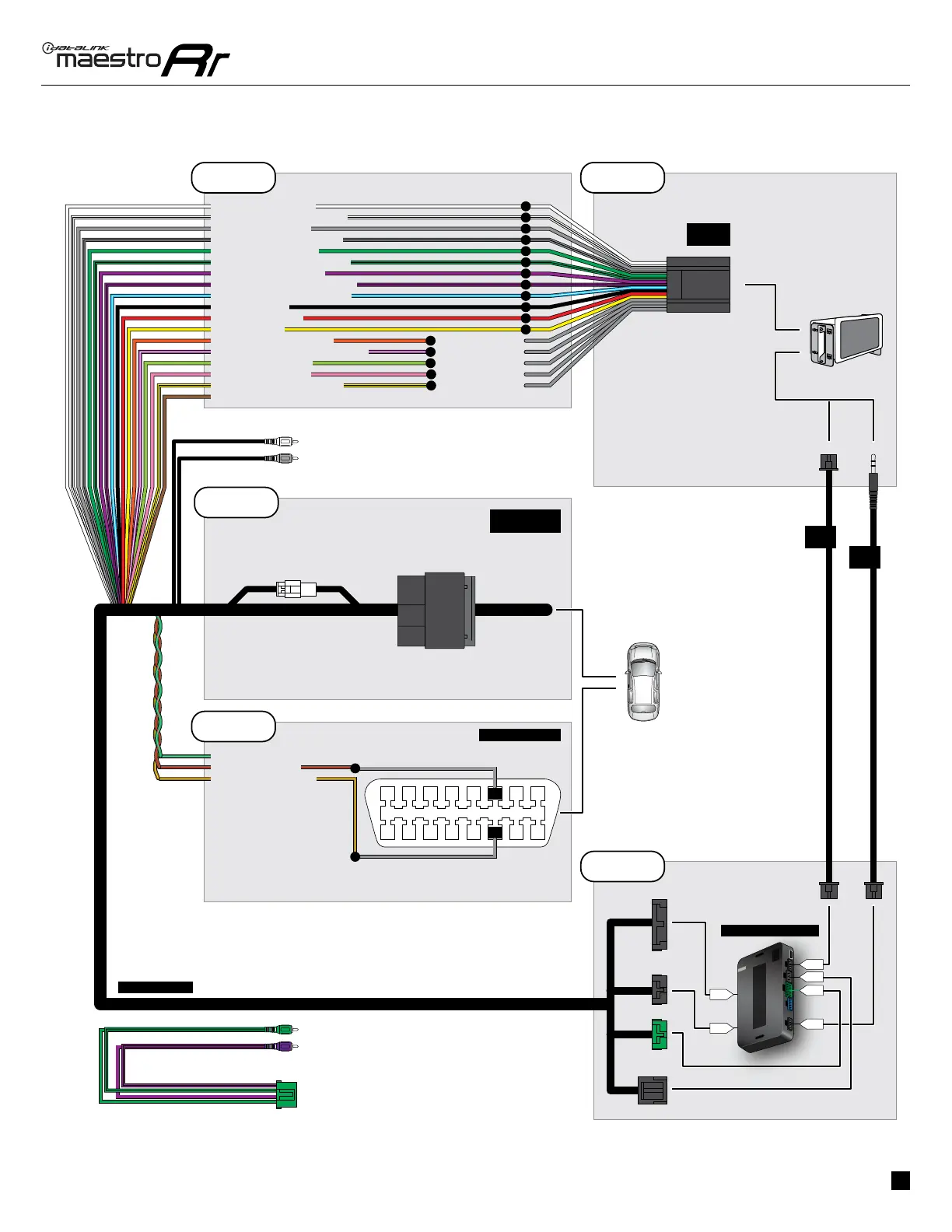

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
(NOT CONNECTED)
(NOT CONNECTED)
(NOT CONNECTED)
(NOT CONNECTED)
(NOT CONNECTED)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
VW1 T-HARNESS
FACTORY RADIO
HARNESS
BROWN/RED - CANH
GREEN/WHITE (NOT CONNECTED)
BROWN/YELLOW - CANL
OBDII CONNECTOR
WIRES FROM
VEHICLE
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
SEE CHART ON
NEXT PAGE FOR
RADIO WIRE
COLORS
WHITEWHITE
NOTE: PIN SIDE VIEW.
CONNECT TO TWISTED WIRES BEHIND CONNECTOR.
To Next Page
