iDataLink Maestro K150 Install Guide

ADS-RR(SR)-SUB01B-DS
subaRu legacy with haRman KaRdon 2012-2014
Automotive Data Solutions Inc. © 2018
4
3
BACKUP CAMBACKUP CAMCC
AUXAUX
AA
D
BB
STARLINK (N.C.)
NOTE: IF THERE IS NO SOUND, CONNECT THE
RADIO'S MAIN HARNESS BLUE/WHITE WIRE
TO THE BLUE WIRE ON THE SU2 T-HARNESS.
MAESTRO RR MODULE
STEP 1
SU2 T-HARNESS
STEP 4
STEP 5

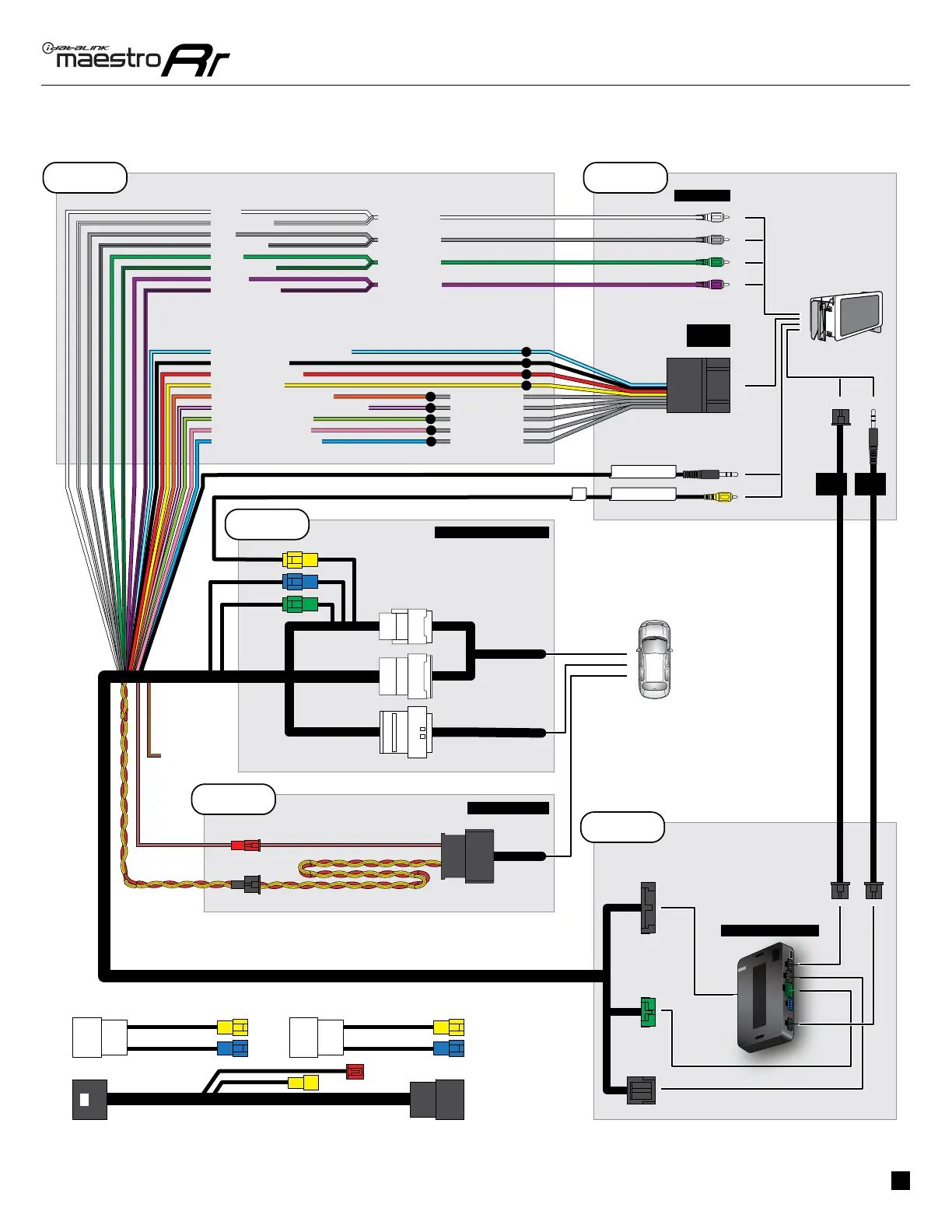

WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3
OBDII CONNECTOR
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
BLUE
GREEN
CONNECTIONS NOT REQUIRED
YELLOW
MAIN
HARNESS
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED
SEE RADIO WIRE
REFERENCE
CHART
FOR RADIO WIRE
COLORS
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
GREEN
GREEN/BLACK
PURPLE/BLACK
PURPLE
LF RCA INPUT
RF RCA INPUT
LR RCA INPUT
RR RCA INPUT
RCA CABLES
