ADS-RR(SR)-FOR02-DS
Ford transit with 4.3" screen 2015-2017
Automotive Data Solutions Inc. © 2018
4
C
A
F
G
C
A
G
F
1
H
H
AUX INAUX IN
BACKUP CAMBACKUP CAM
D
D
STEP 4
OBDII CONNECTOR
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
RCA CABLES
WIRES FROM
VEHICLE
FO2 T-HARNESS
FACTORY RADIO HARNESS
CONNECT ONLY WHEN
THERE IS NO SYNC IN
VEHICLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 2
STEP 5
STEP 6
MAESTRO RR MODULE
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
BROWN (NOT CONNECTED)

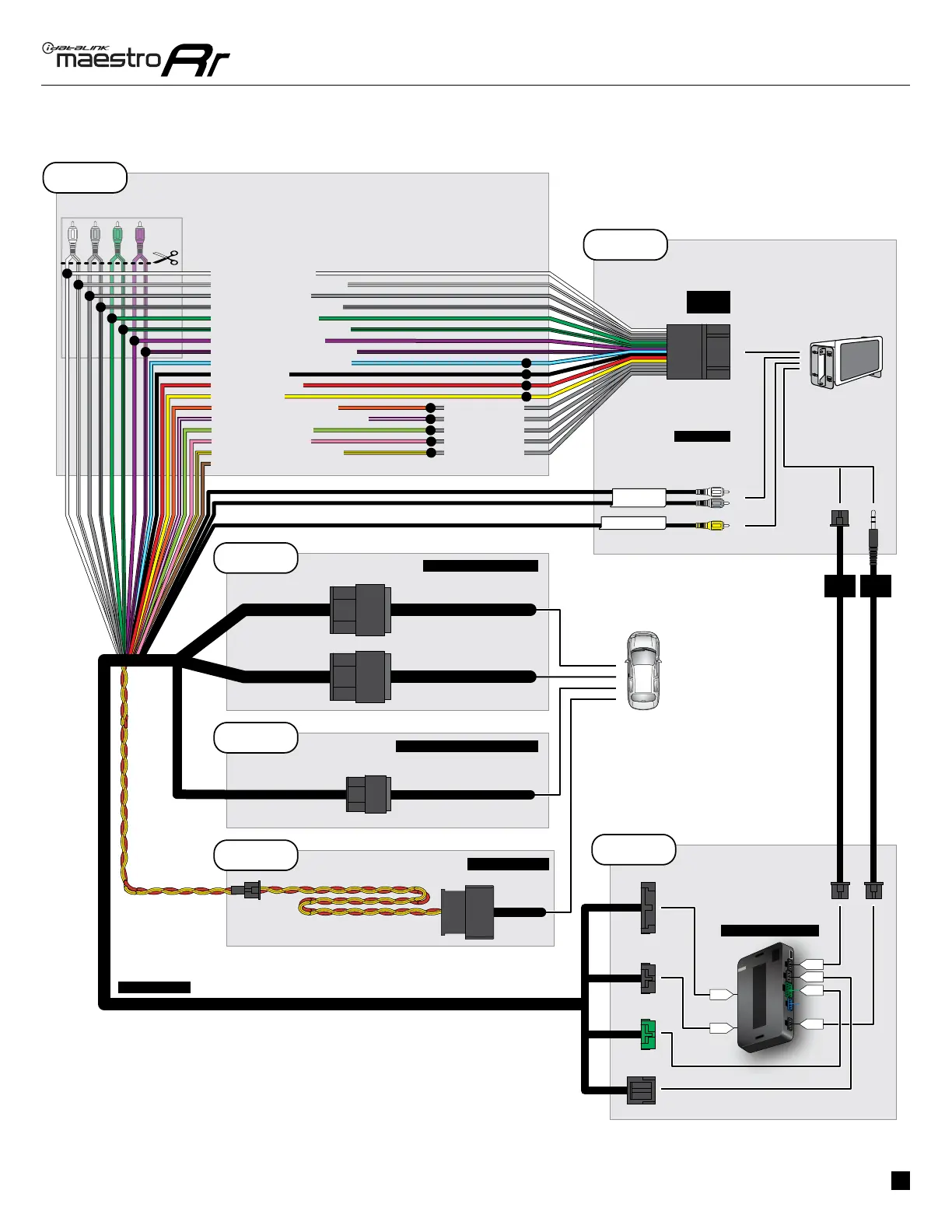

WIRING DIAGRAM
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
SCREEN HARNESS ABOVE RADIO
STEP 3
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE
COLORS
