iDataLink Maestro K150 Install Guide

ADS-RR(SR)-CHR02-DS
dodge dUrango Base 2004-2007
Automotive Data Solutions Inc. © 2018
4
C
A
H
F
G
D
C
A
G
F
H
1
D
OBDII CONNECTOR

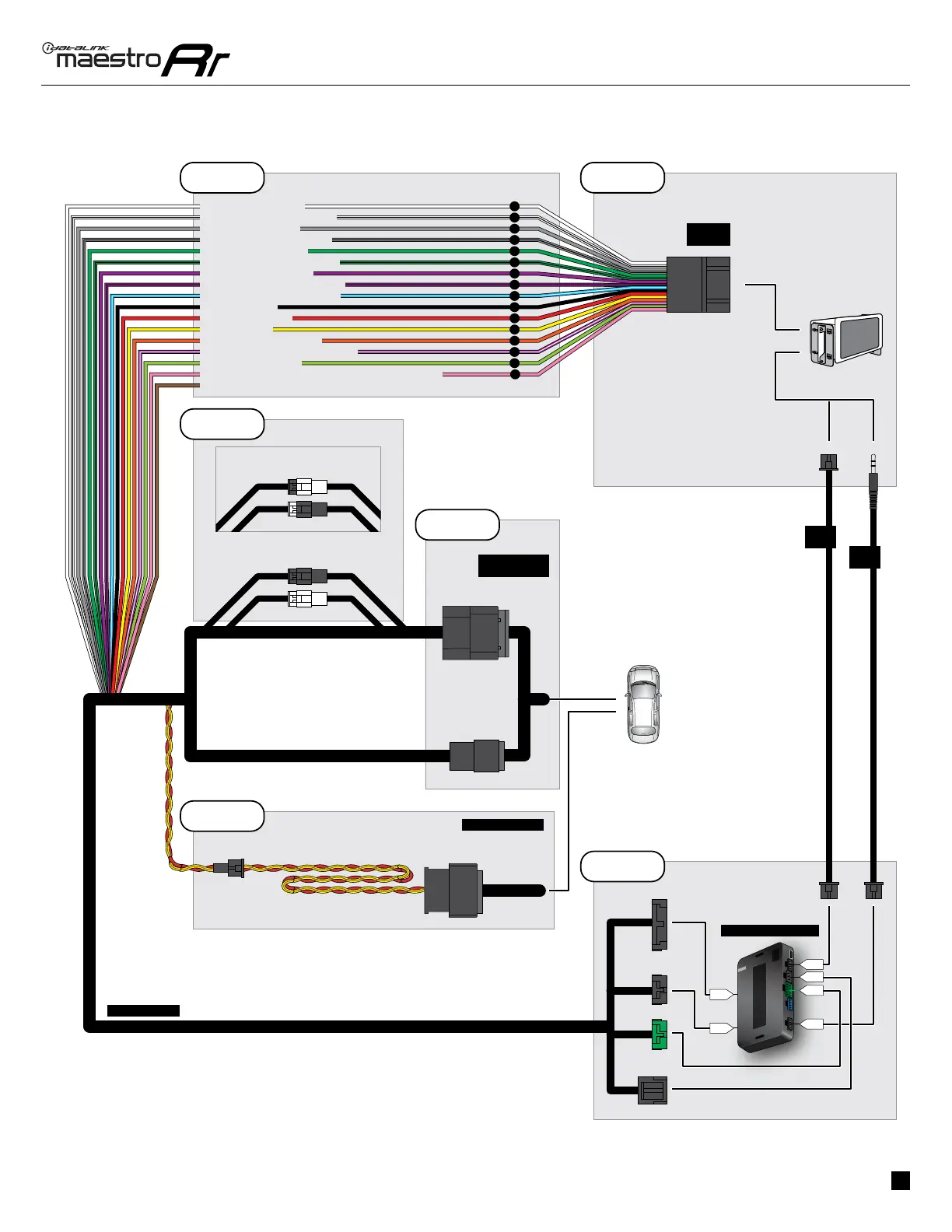

WIRING DIAGRAM
STEP 1
STEP 2
STEP 4
STEP 3
STEP 5
STEP 6
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
WHITE
WHITE
CONNECTIONS WITH AMP
CONNECTIONS WITHOUT AMP
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH2 T-HARNESS
FACTORY RADIO
HARNESS
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
WHITEWHITE
BLACKBLACK
BLACK
BLACK
