ADS-RR(SR)-CHR01-DS
chrysler town and coUntry 2012-2016
Automotive Data Solutions Inc. © 2018
5
C
A
H
F
G
D
C
A
G
F
H
1
10 11 12 13 14 15 16
1 2 3 4 5
6 7 8
9
D

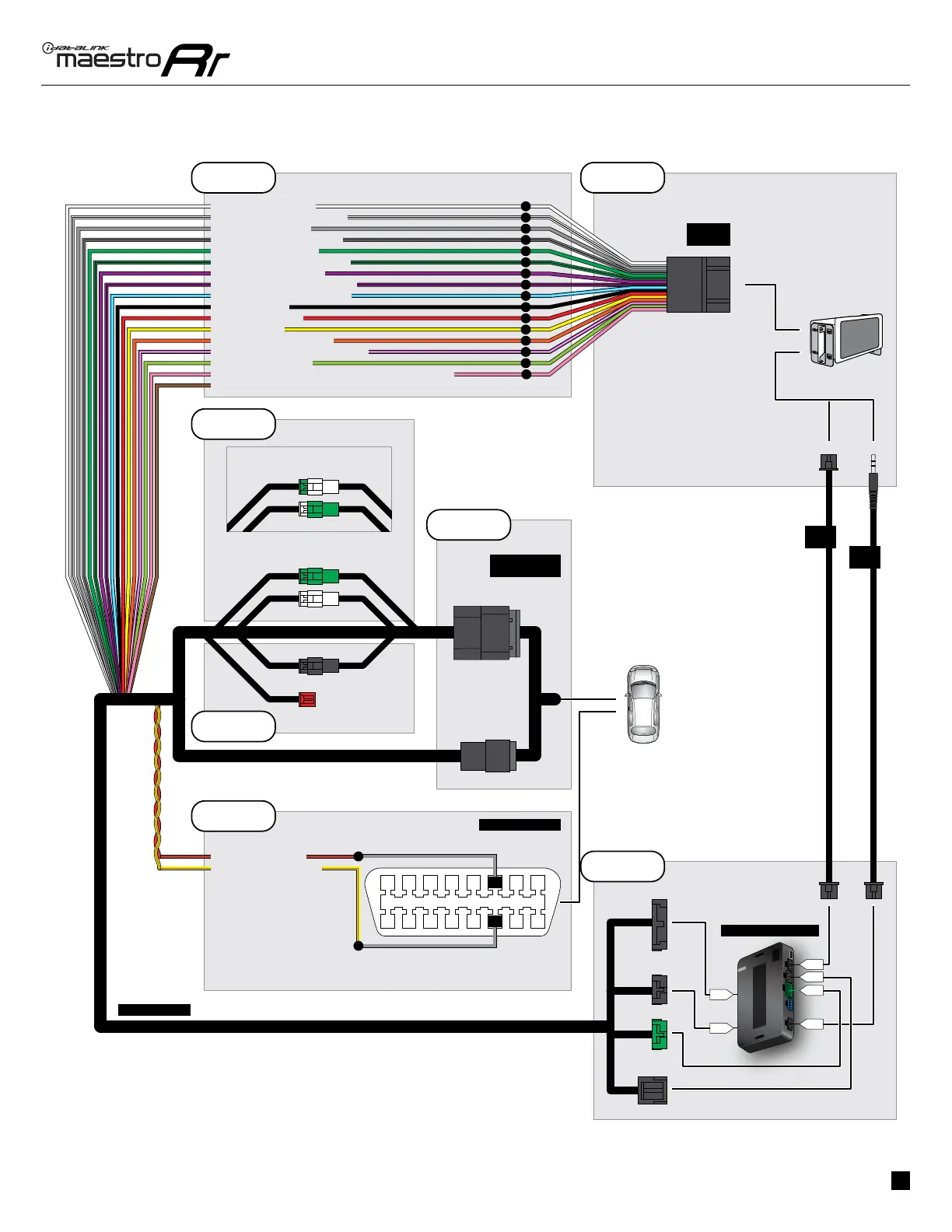

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
STEP 7
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
GREEN WHITE
WHITE GREEN
CONNECTIONS WITHOUT AMP
CONNECTIONS WITH AMP
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH1 T-HARNESS
FACTORY RADIO
HARNESS
OBDII CONNECTOR
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITEWHITE
BLACKBLACK
RED (NC)
NOTE: PIN SIDE VIEW.
CONNECT TO TWISTED WIRES BEHIND CONNECTOR.
RED/BROWN - CAN2H
YELLOW/BROWN - CAN2L
