ADS-RR(SR)-CHR03M-DS
chRysleR 200 2015-2017
Automotive Data Solutions Inc. © 2018
5
1
BACKUP CAMBACKUP CAM
STEP 6
K200 DASH KIT

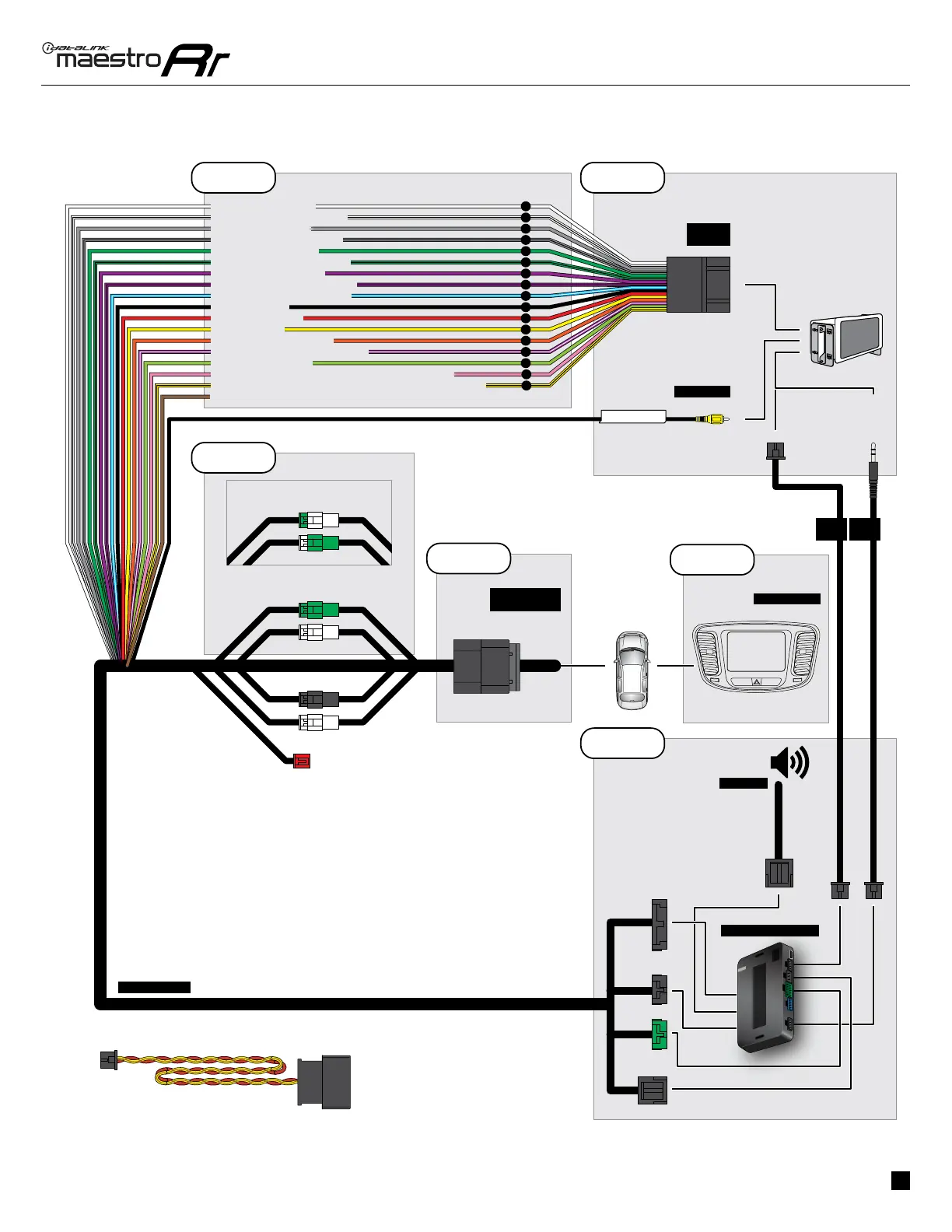

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
GREEN WHITE
WHITE GREEN
CONNECTIONS WITH AMP
CONNECTION NOT REQUIRED
CONNECTIONS WITHOUT AMP
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH3 T-HARNESS
FACTORY RADIO
HARNESS
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
YELLOW/BLACK - FOOT BRAKE (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITEWHITE
WHITEWHITE
BLACKBLACK
RCA CABLES
SPEAKER*
*Optional accessory
for vehicles without oem amp,
with oem parking sensors,
cross-traffic alerts or
lane departure alerts.
BROWN (NOT CONNECTED)
READ NOTE IN
INSTALLATION
INSTRUCTIONS
SECTION
N.C.
To Next Page
