iDataLink Maestro K150 Install Guide

ADS-RR(SR)-FOC1-DS
FoRd Focus with 4.3" myFoRd scReen 2012-2014
Automotive Data Solutions Inc. © 2018
3
Fig. 1.3
Fig. 1.5
Fig. 1.4
Fig. 1.6
Fig. 1.1 Fig. 1.2

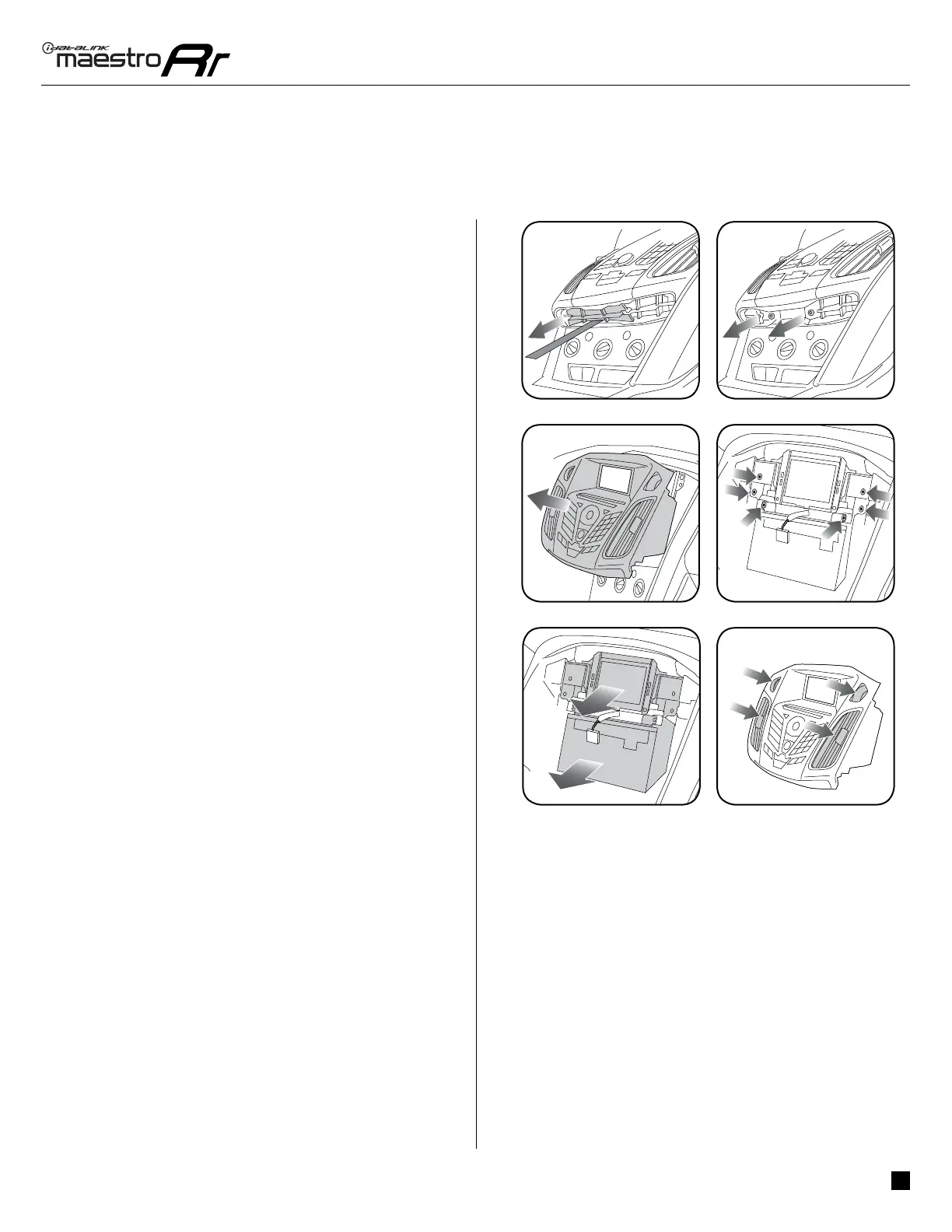

INSTALLATION INSTRUCTIONS
DASh DISASSEMBLy
1. Pry off center cap at the bottom of the factory radio bezel to
expose two (2) screws. (Fig. 1.1)
2. Remove two (2) Torx T25 screws. (Fig. 1.2)
3. Starting at the bottom, pull the bezel forward. At the same
time, use a panel removal tool to pry the bezel. (Fig. 1.3)
Disconnect the connector at the back of the bezel and put it
to the side.
4. Remove four (4) Torx T25 screws holding the screen frame,
and two (2) Torx T25 holding the radio body. (Fig. 1.4)
5. Remove both the screen assembly and the radio body,
disconnecting the plugs in the process. (Fig. 1.5)
6. Remove the vents from the factory bezel. (Fig. 1.6)
1
