iDataLink Maestro K150 Install Guide

Automotive Data Solutions Inc. © 2014
5
ALPRRSRGMS05DSOGEN
USING YOUR FACTORY SYSTEMS
USING YOUR
FACTORY
SYSTEMS (Continued)

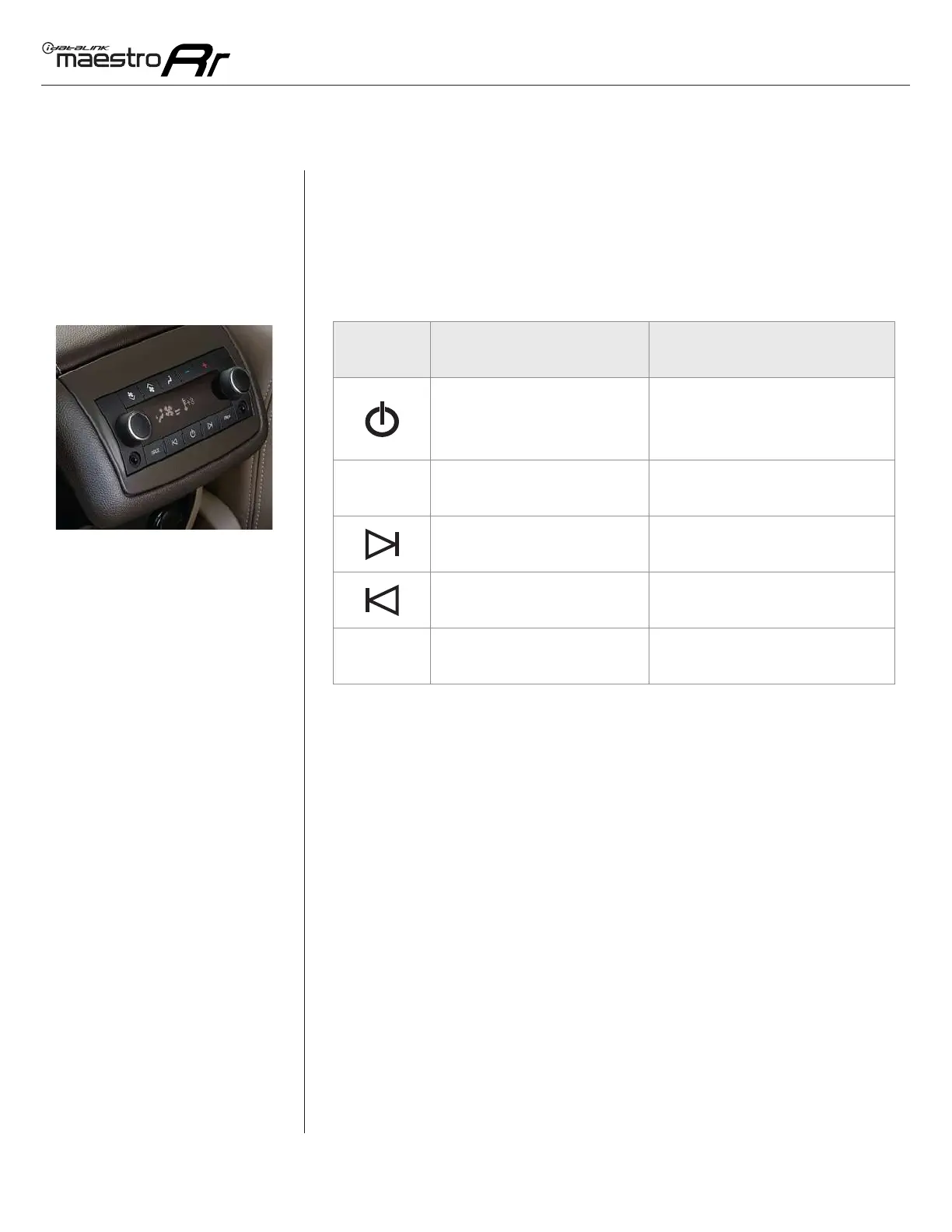

REAR SEAT AUDIO CONTROLS
The Rear Seat Audio Controls can be used to control the Alpine radio from the rear seat.
These are most often located on the back of the center console. The picture below is rep-
resentative and your controls may vary slightly. These controls can be enabled and disabled
from the Maestro Settings menu as described later in this guide.
REAR SEAT VIDEO SYSTEM
If your vehicle is equipped with the factory rear seat video system, it will be detected by the
Maestro RR module and it will operate. An optional harness, the AVGM5, is required to con-
nect the Alpine radio to the RSV system. This will provide connections for the video output of
the Alpine radio to drive the factory screen and also provide connections to connect the AUX
A/V input to the A/V input of the Alpine radio.
Rear Seat Audio
Control Buttons
Functions with RSA power turned OFF Functions with RSA power turned ON
Toggles the RSE power to on. If the power
is switched off the LCD will show Dual Zone
Off and all speakers will play the audio
from the primary radio source.
Toggles the RSE power to off. If the power
is switched on the LCD will show Dual Zone
On and the radio will be placed in Dual Zone
automatically. The rear speakers will mute and
the controller will show you the rear source
selected in radio.
SRCE
Changes the Primary radio source to the
next source.
Changes the rear source to the next source. The
RSA screen will display the selected source.
Sends a Track Up command to the radio.
The function that results is controlled by a
setting in the Alpine radio.
The right arrow will increase the rear master
volume level.
Sends a Track Down command to the radio.
The function that results is controlled by a
setting in the Alpine radio.
Changes the rear source to the previous source.
The RSA screen will display the selected source.
LEFT & RIGHT
KNOBS
No function
Adjusts the volume of the left and right
headphones.
