iDataLink Maestro K150 Install Guide

ADS-RR(SR)-SUB01-DS
subaRu wRX without naV 2008-2014
Automotive Data Solutions Inc. © 2017
4
1
BACKUP CAMBACKUP CAM
SUB INSUB IN
CC
BB
D
AA
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
SU1 T-HARNESS
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 5
STEP 6
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED

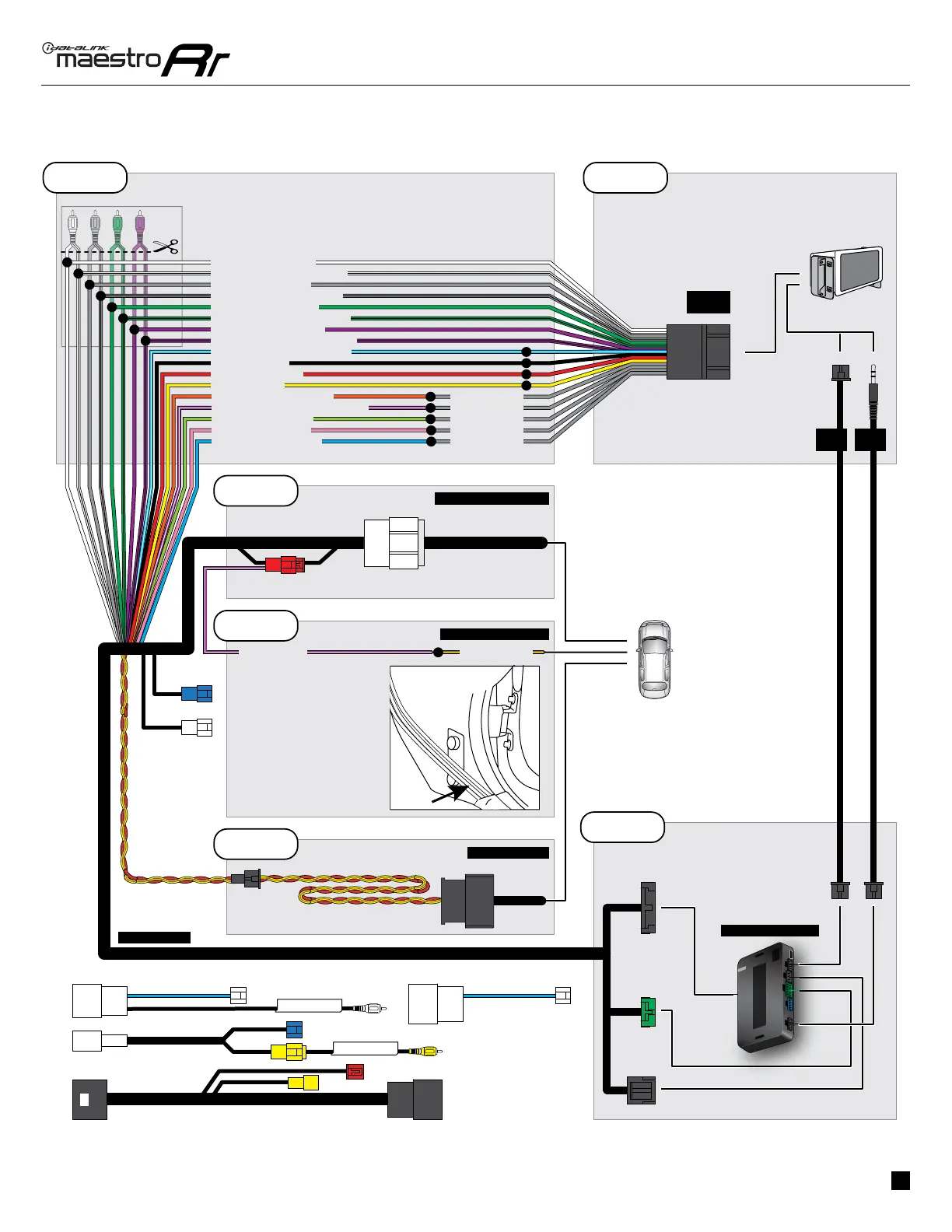

WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
PASSENGER KICK PANEL
STEP 3
STEP 4
OBDII CONNECTOR
SEE RADIO WIRE
REFERENCE
CHART
FOR RADIO WIRE
COLORS
CONNECT TO
AFTERMARKET RADIO
RED
BLUE (NC)
WHITE (NC)
PURPLE/WHITE BROWN/YELLOW
CONNECTIONS NOT REQUIRED
DATA
CABLE
AUDIO
CABLE
MAESTRO RR MODULE
