idp SOLID Series - Figure 44 Magnetic Encoding Advanced Option; Figure 45 Load;Save Option

28

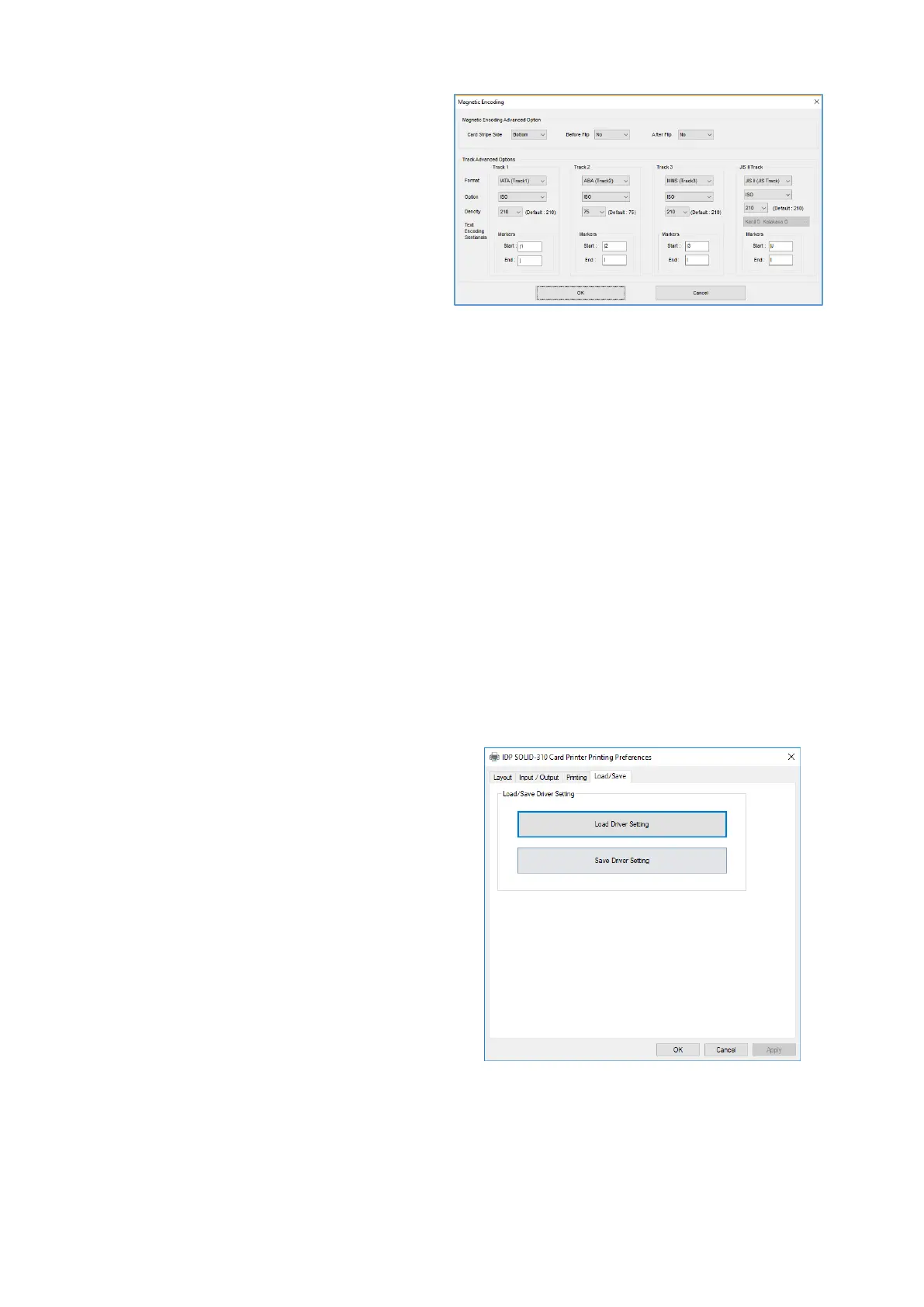

(6) Encoding Advanced Option
Card Stripe Side : The location of
magnetic stripe [Bottom / Top]
Before Flip : Do flipping before encoding
[No / Yes]
After Flip : Do flipping after encoding [No /
Yes]
 Track Advanced Options :
Format : Encoding format (IATA, ABA,
MINS, JISII, Bits Mode)
Track 1 : (default) IATA
Track 2 : (default) ABA
Track 3 : (default) MINS
JIS II Track : (default) JIS II
Density: MS encoding density (210, 75)
Text Encoding Sentinels : Start, End
Marker for text magnetic encoding
Start : Start Marker
End : End Marker
Figure 44 Magnetic Encoding Advanced Option
(7) Load/Save Option
Load Driver Setting : Load the saved
driver configuration file
Save Driver Setting : Save the current
driver configuration to the file
Figure 45 Load/Save Option
