idp SOLID Series - Figure 67 USB Port State; Figure 68 Rebooting the Network Module; Figure 69 Reset to Default

47
“USB port state” shows USB device
status connected on network
module.
 Network module has 4 USB ports.
 Network module supports PC/SC.
When you install the encoders that
support PC/SC on network module, you
can recognize the status of encoders.

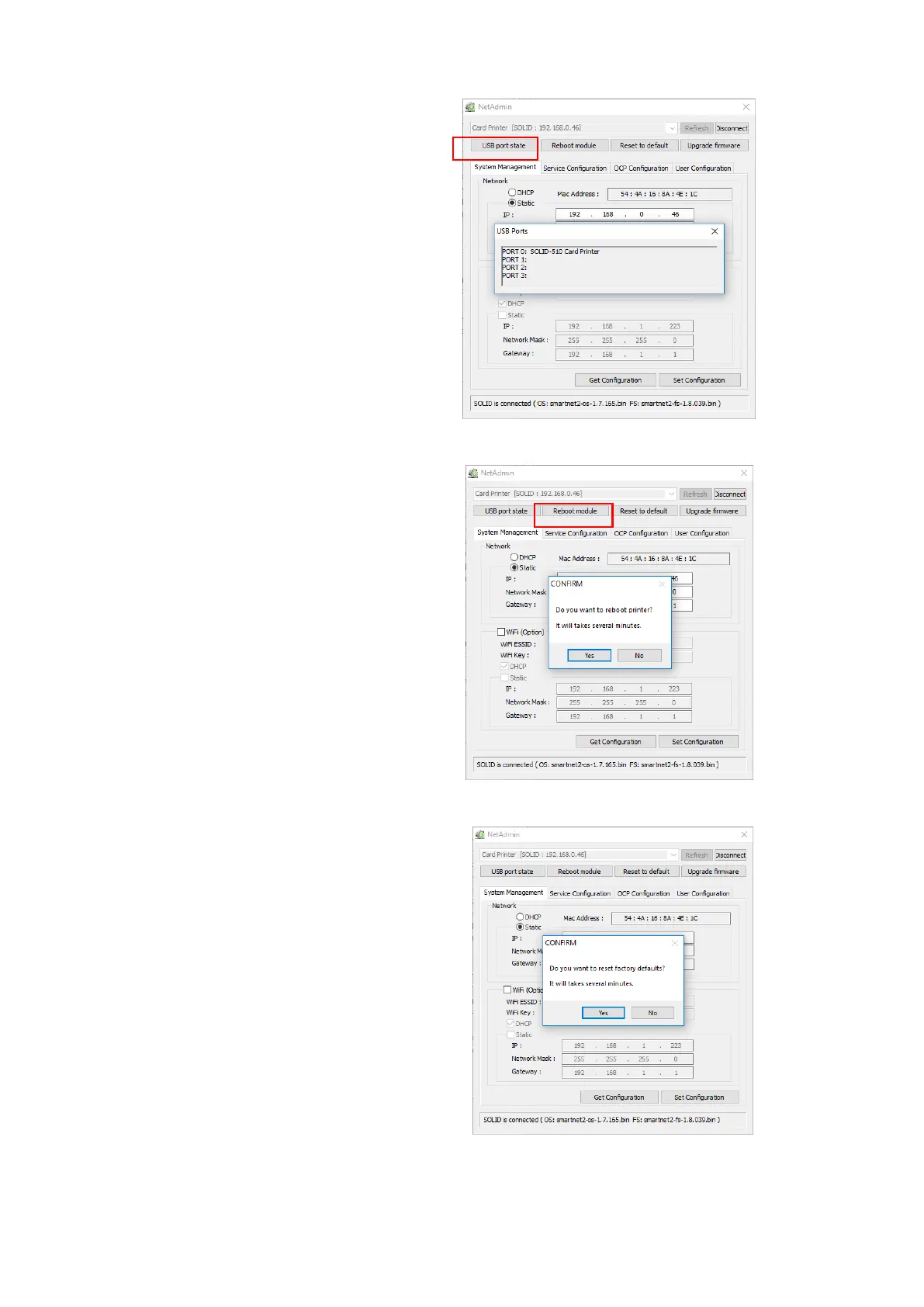

Figure 67 USB port state
“Reboot module” reboots network
module.
 Please click “Yes” when pop-up window
comes out for reboot.
 It takes 1 minute to reboot.
 Please click “Refresh” after reboot.
When proper printer shown, please
connect printer by clicking “Connect”.
Figure 68 Rebooting the network module
“Reset to default” resets to default
and reboot network module.
 Please click “Yes” when pop-up window
comes out for reset.
 It takes 1 minute to reboot.
 Please click “Refresh” after reboot.
When proper printer shown, please
connect printer by clicking “Connect”.
Figure 69 Reset to default
