prox.pad Installation/Programming Manual
Page 22 of 86 Document # 6055676, Rev 2.2, D4b

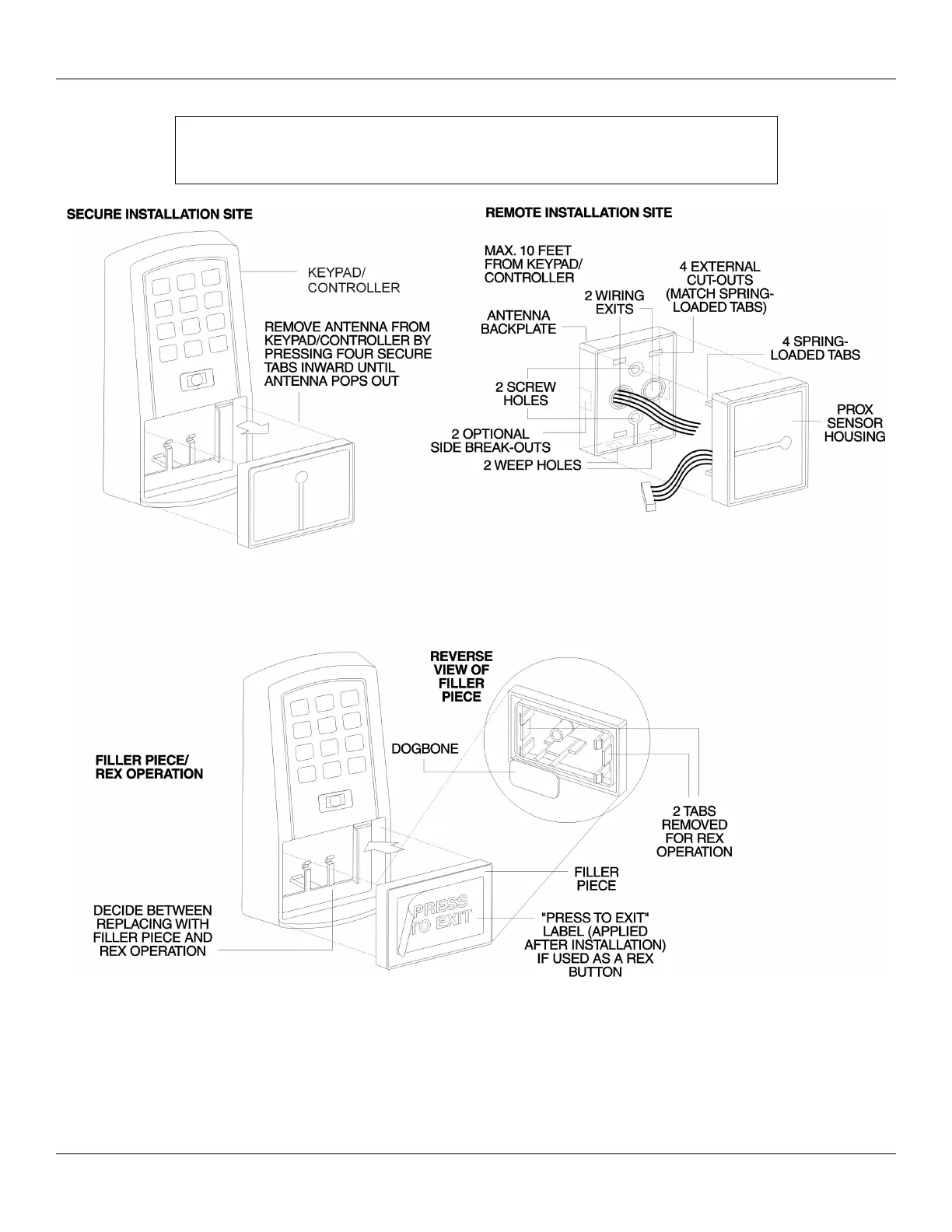

Figure 5: Performing a Secure Installation
For the remote antenna wire, use ALPHA 1294C (22AWG) 4-wire, stranded and
shielded cable. The cable shield drain wire must be grounded at the reader end to
P1, pin 4 connection (DC Power Supply Ground).
