prox.pad Installation/Programming Manual
2.5.6 Wiring the Main Relay
The door lock is wired to connector P1 on the prox.pad main circuit board. Wiring for this 5-pin connector is described in Table 2,
Figure 14 provides an Electric Strike (Fail Secure) wiring diagram, Figure 15 a MagLock (Fail Safe) wiring diagram. Refer to the
power supply recommendations in section 1.13.1 if necessary.
Document # 6055676, Rev 2.2, D4b Page 33 of 86

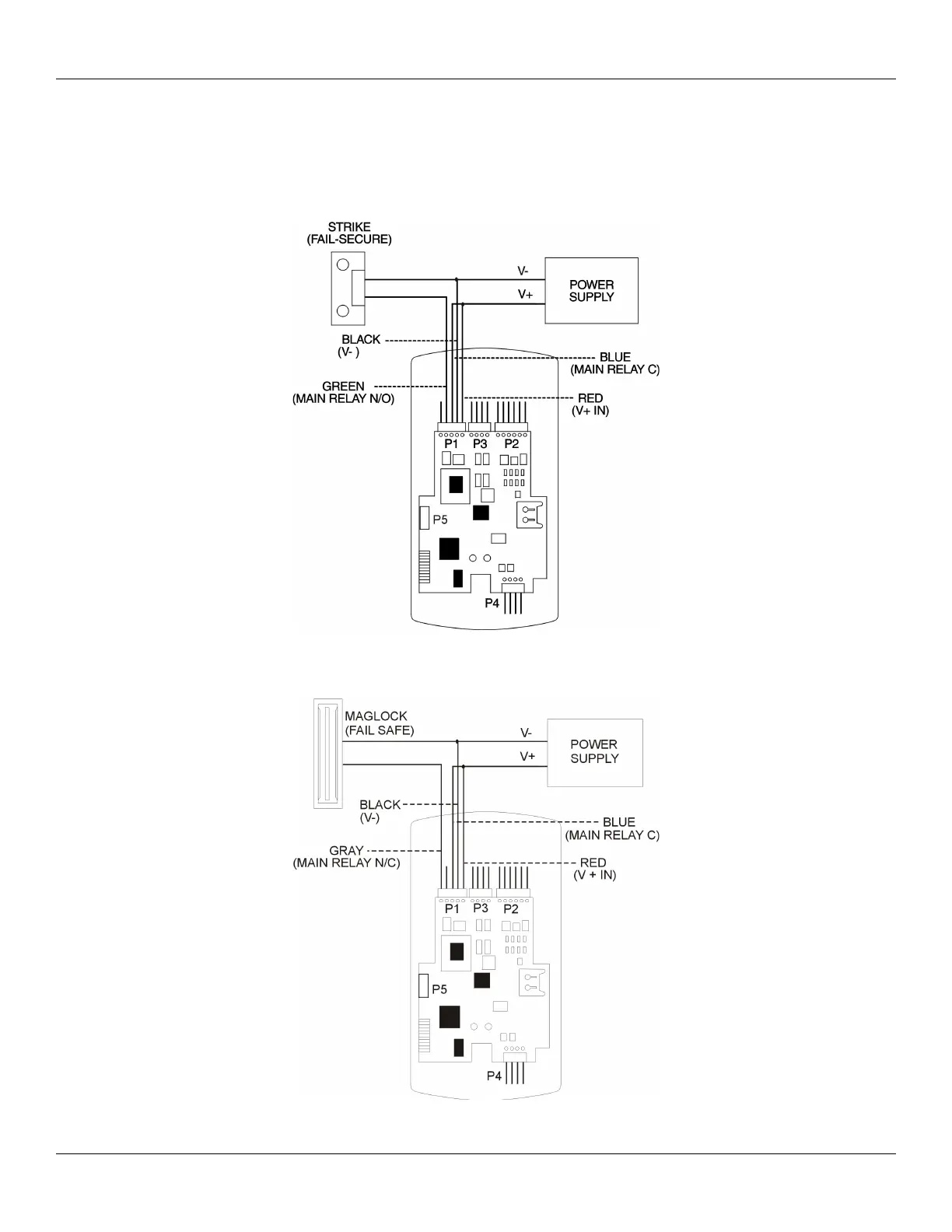

Figure 14: Electric Strike (Fail Secure) Wiring
Figure 15: MagLock (Fail Safe) Wiring Diagram
