IEI Technology WAFER-JL-N5105 User Manual

WAFER-JL-N5105 SBC
Page 18

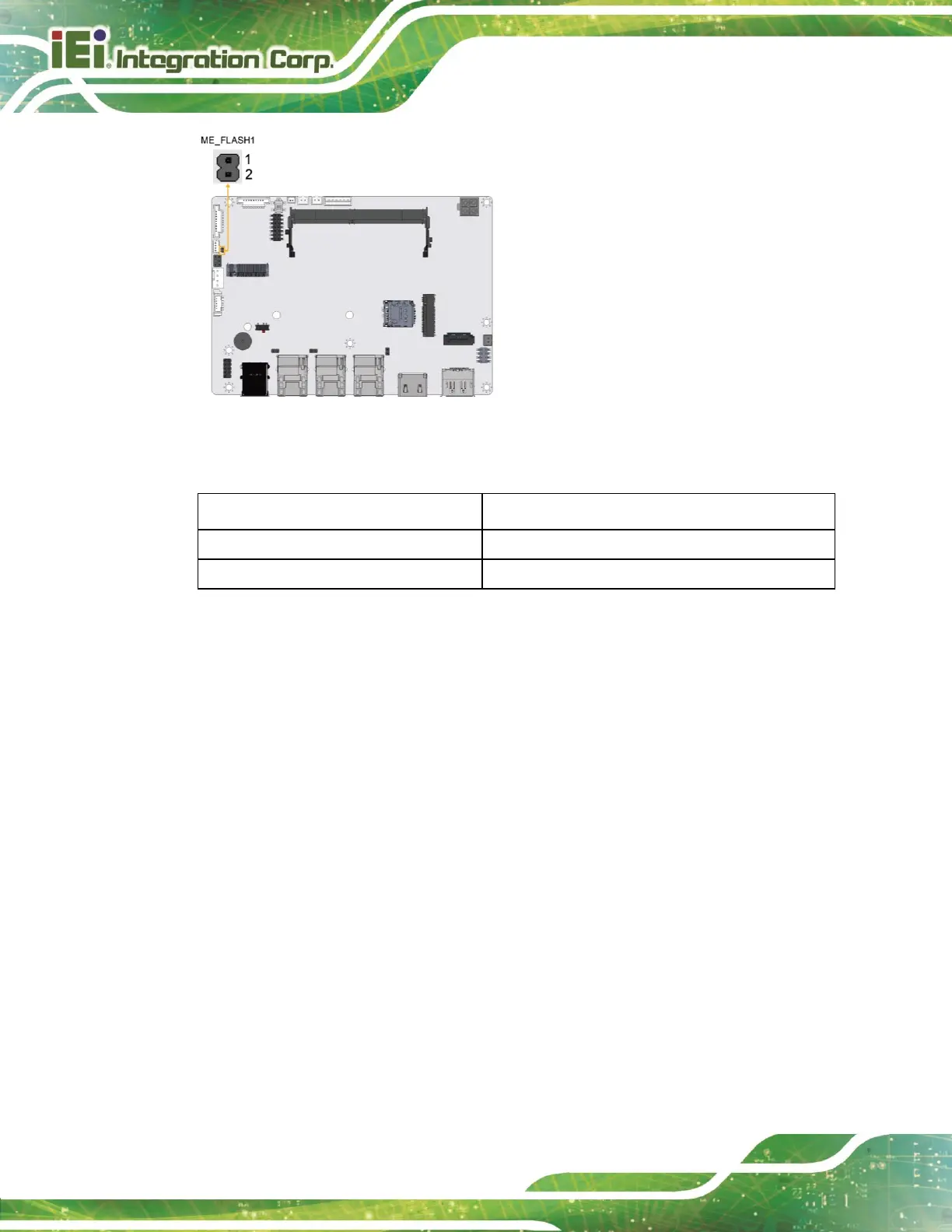

Figure 3-4: ME Override Setting Jumper Locations
Table 3-5: ME Override Setting Jumper Pinouts
To update the ME firmware, please follow the steps below.
Step 1: Before turning on the system power, short the Flash Descriptor Security
Override jumper.
Step 2: Update the BIOS and ME firmware, and then turn off the system power.
Step 3: Remove the metal clip on the Flash Descriptor Security Override jumper to its
default setting.
Step 4: Restart the system. The system will reboot 2 ~ 3 times to complete the ME
firmware update.
PIN NO.
DESCRIPTION
Open
Disable (default)
Short
Enable

IEI Technology WAFER-JL-N5105 Specifications

General

Brand	IEI Technology
Model	WAFER-JL-N5105
Category	Single board computers
Language	English
