WAFER-JL-N5105 SBC

Page 34

3.2.17 USB 2.0 Connector

CN Label:

USB3

CN Type:

8-pin header, p=2.00 mm

CN Location:

See Figure 3-19

CN Pinouts:

See Table 3-22

The USB connector provides two USB 2.0 ports by dual-port USB cable.

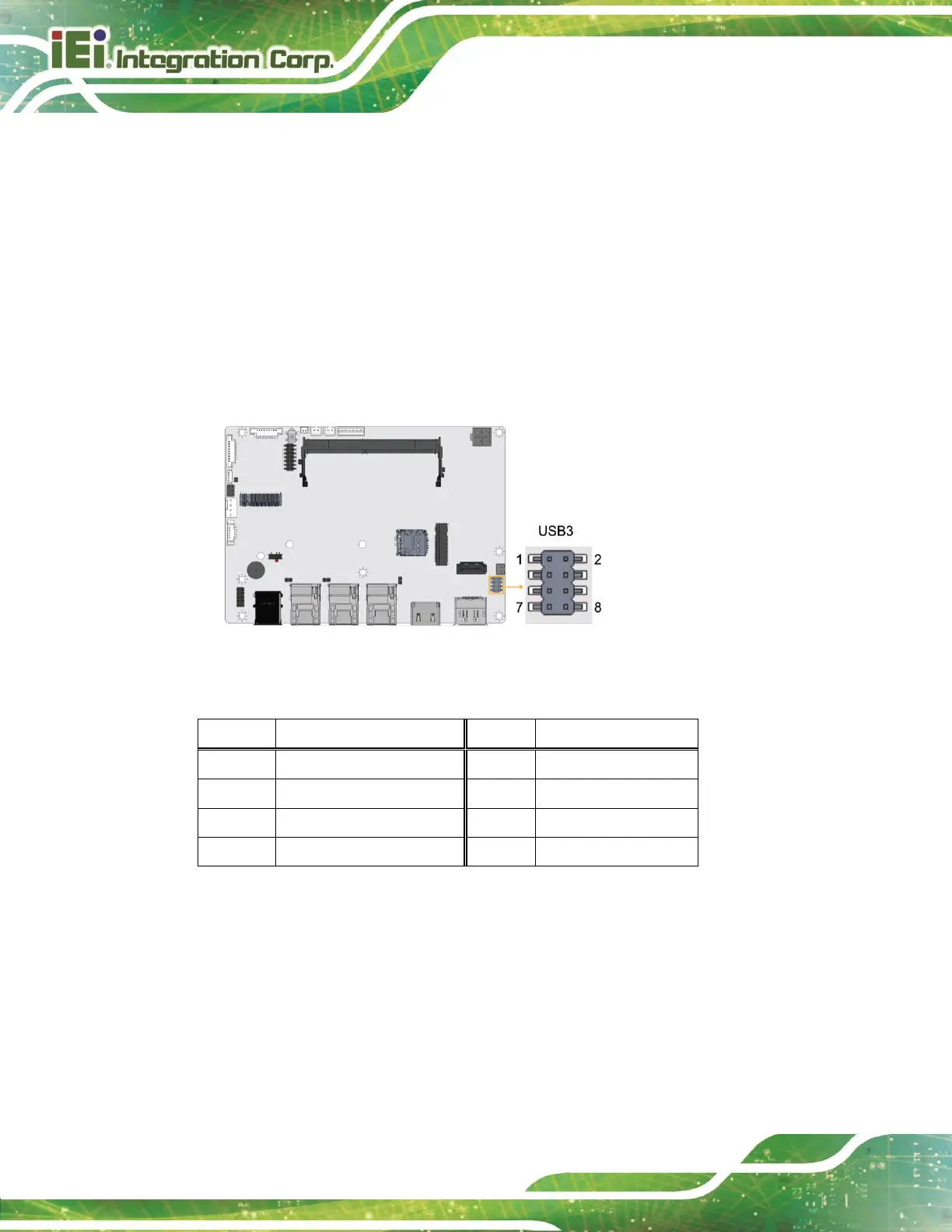

Figure 3-19: USB Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

VCC

GND

USB DATA-

USB DATA+

USB DATA-

GND

VCC

Table 3-22: USB Connector Pinouts
