WAFER-JL-N5105 SBC

Page 30

3.2.13 SATA 6Gb/s Drive Connector

CN Label:

SATA1

CN Type:

7-pin SATA connector

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-18

The SATA 6Gb/s drive connector is connected to a SATA 6Gb/s drive. The SATA 6Gb/s

drive transfers data at speeds as high as 6Gb/s.

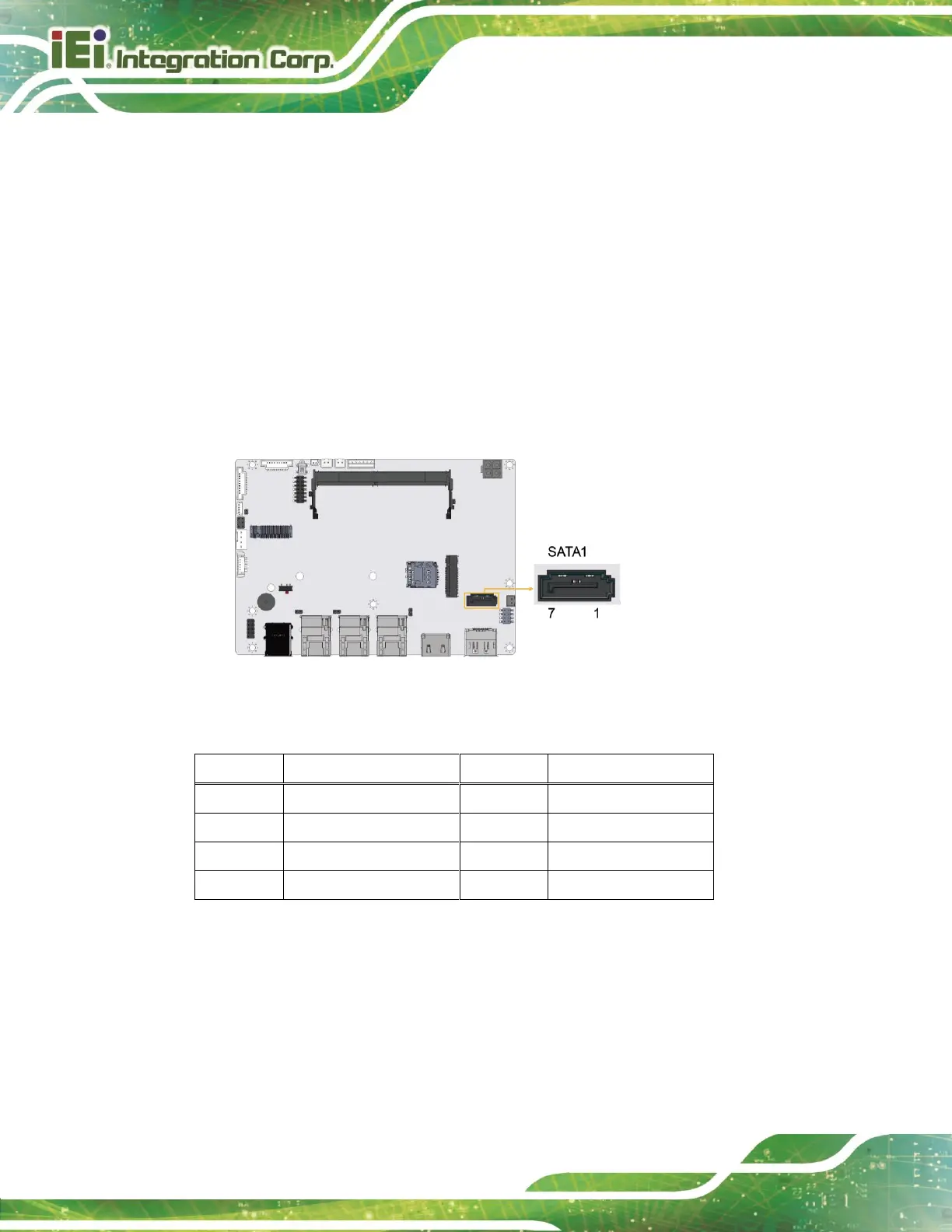

Figure 3-15: SATA 6Gb/s Drive Connectors Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

SATA_RX

‐

SATA_TX+

SATA RX+

SATA_TX

‐

GND

N/C

Table 3-18: SATA 6Gb/s Drive Connectors Pinouts
