WAFER-JL-N5105 SBC

Page 24

3.2.8 LAN LED Connectors

CN Label:

JLAN_LED1, JLAN_LED2, JLAN_LED3

CN Type:

2-pin header, p=2.00 mm

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11, Table 3-12 and Table 3-13

The LAN LED connectors connect to the LAN link LEDs on the system.

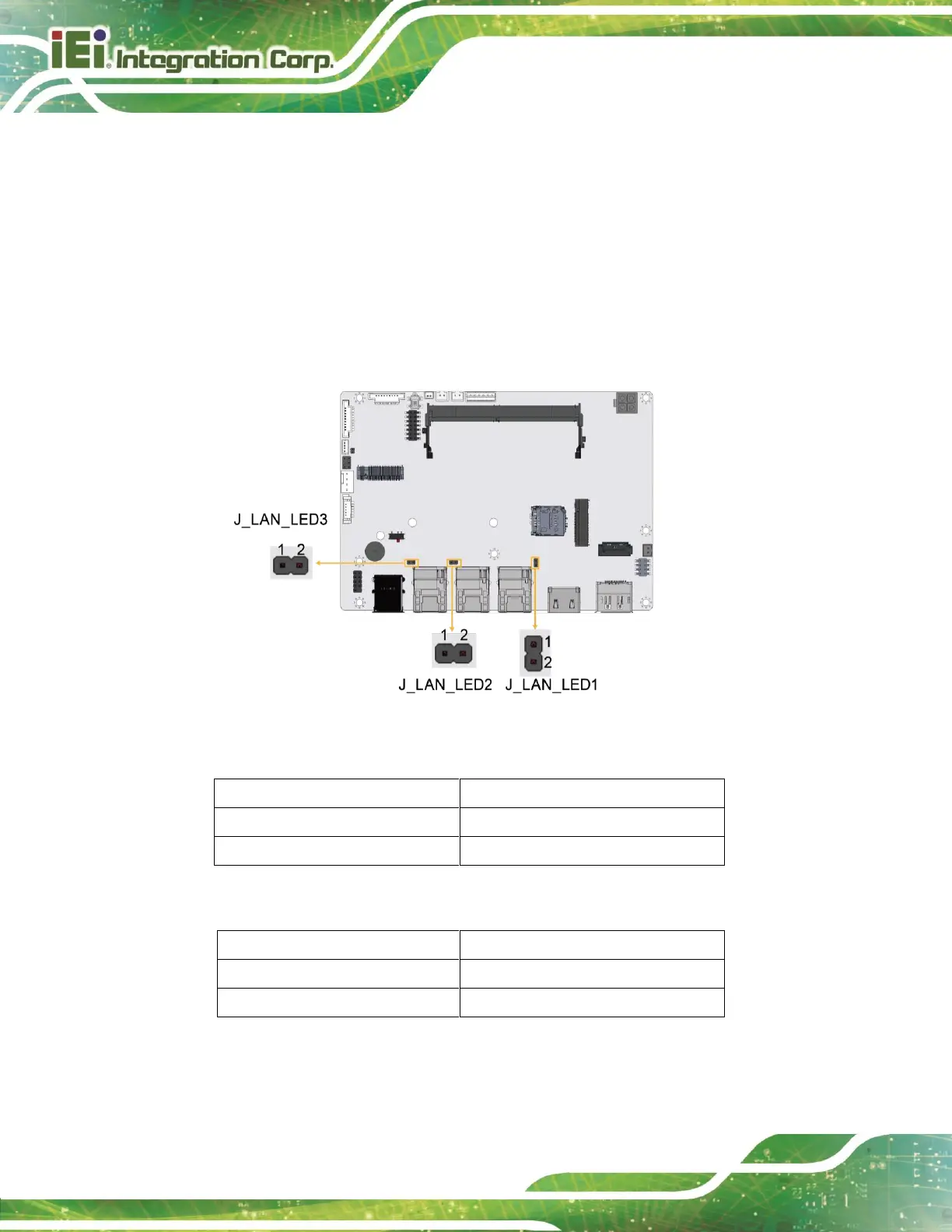

Figure 3-10: LAN LED Connector Locations

Description

+3.3V

LAN1_LED_LNK#_ACT

Table 3-11: LAN1 LED Connector Pinouts

Description

+3.3V

LAN2_LED_LNK#_ACT

Table 3-12: LAN2 LED Connector Pinouts
