WAFER-JL-N5105 SBC

Page 41

3.3 External Peripheral Interface Connector Panel

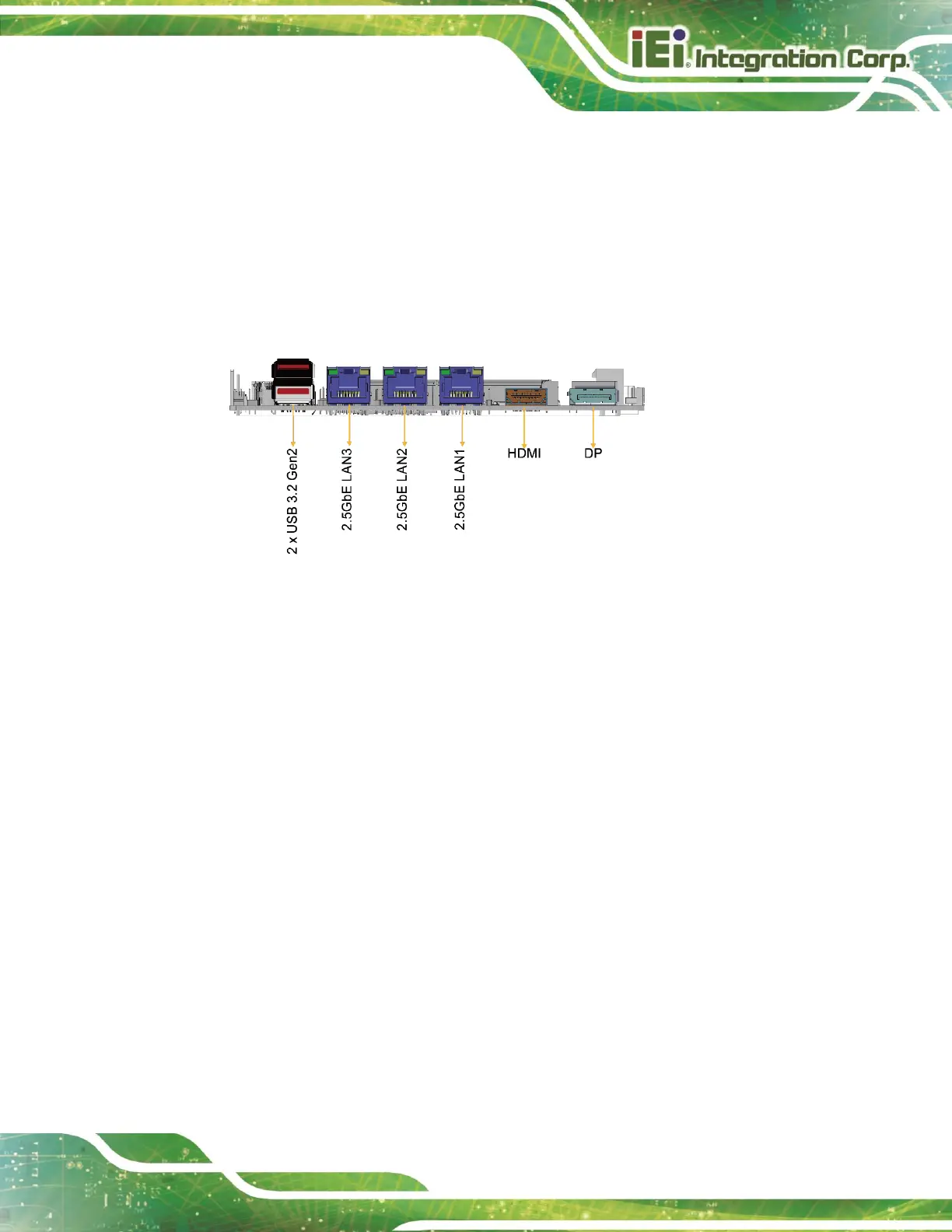

Figure 3-24 shows the WAFER-JL-N5105 external peripheral interface connector (EPIC)

panel. The EPIC panel consists of the following:

 1x HDMI &1 x DP connector

 3 x GbE RJ-45 connector

 2x USB 3.2 Gen 2 connector

Figure 3-24: External Peripheral Interface Connector
