WAFER-JL-N5105 SBC

Page 29

3.2.12 RS-232 Serial Port Connector

CN Label:

COM1,COM2

CN Type:

9-pin wafer, p=1.25 mm

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-17

The serial connector provides RS-232 connection.

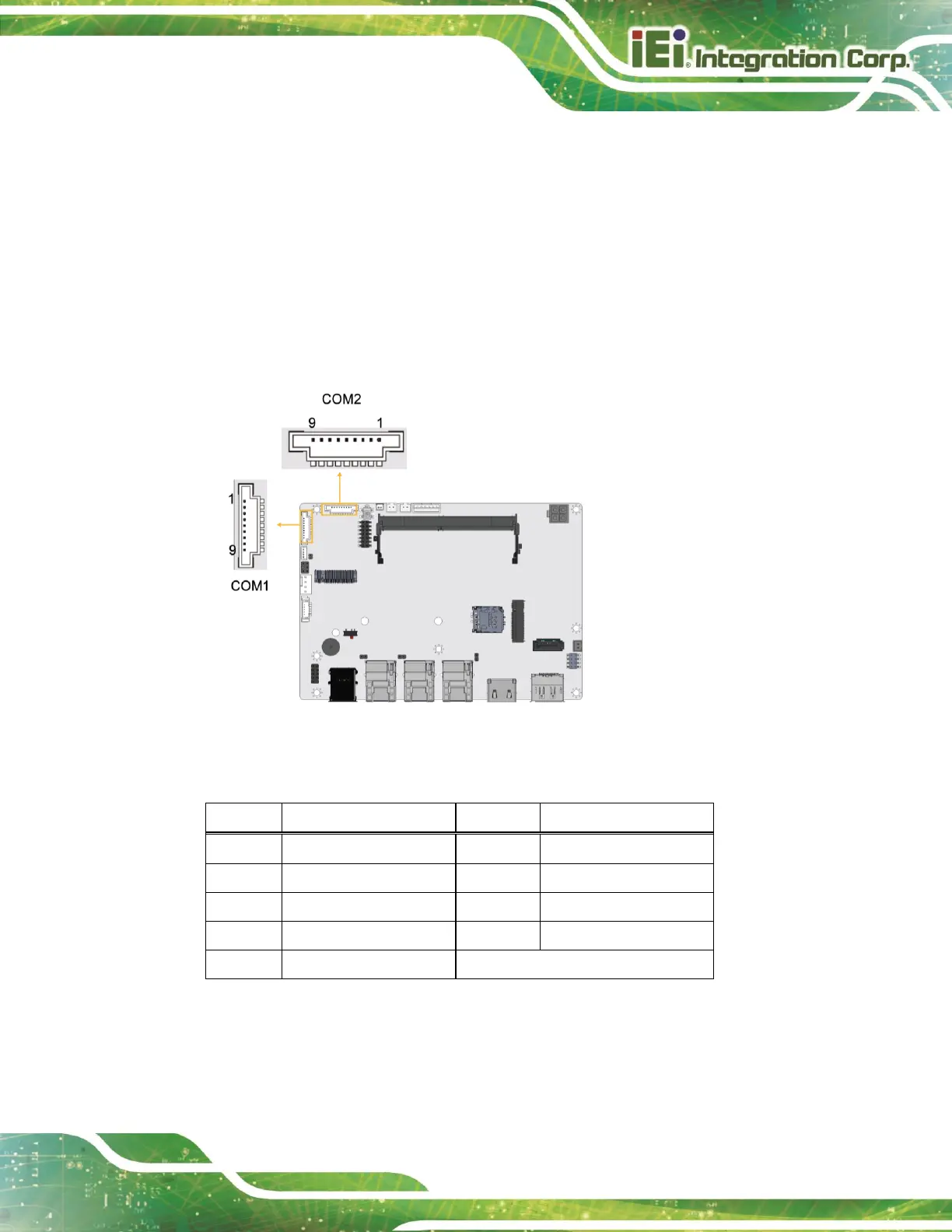

Figure 3-14: RS-232 Serial Port Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

DCD

DSR

RXD

RTS

TXD

CTS

DTR

GND

Table 3-17: RS-232 Serial Port Connector Pinouts
