WAFER-JL-N5105 SBC

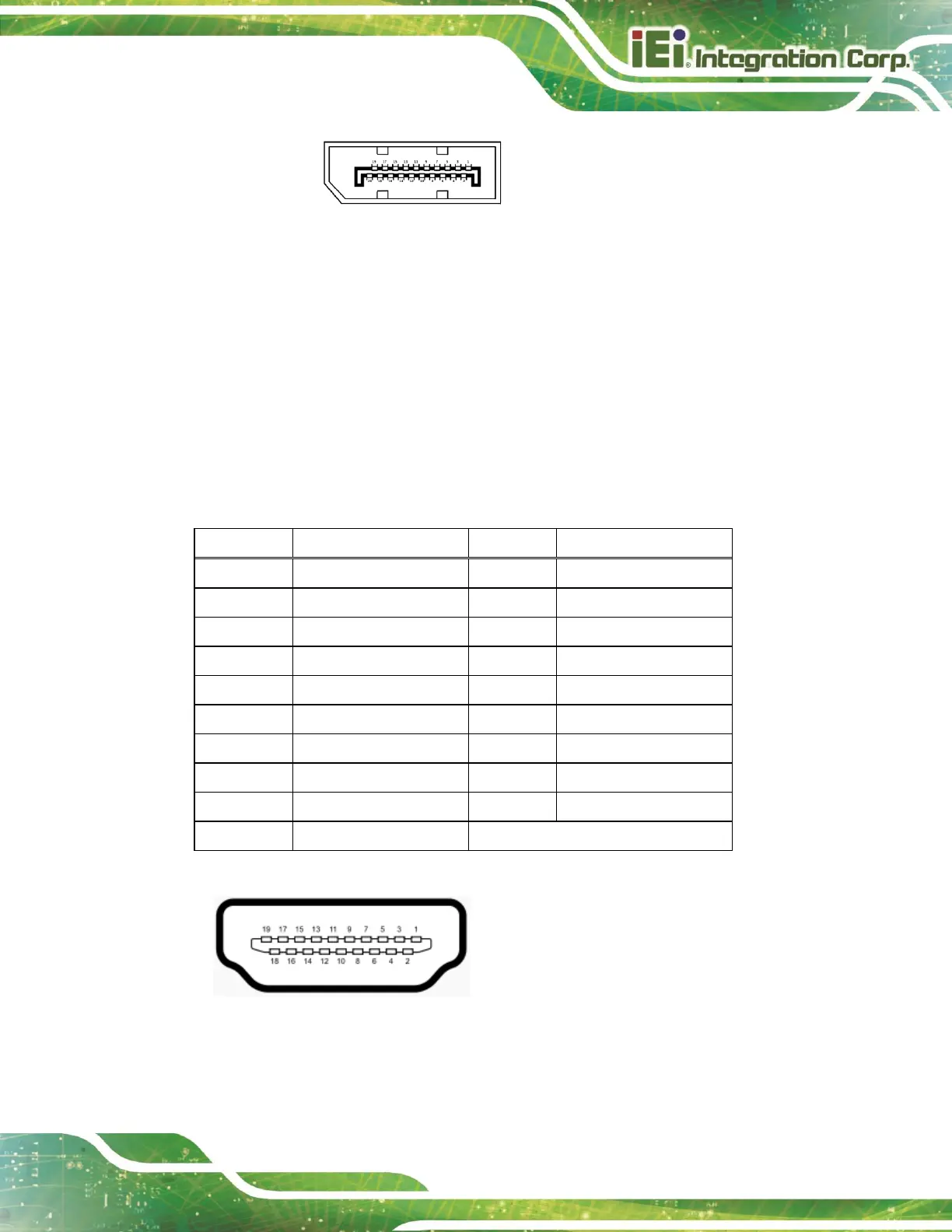

Page 45

Figure 3-28: External DisplayPort Connector Location

3.3.2 External Interface Panel Connectors

CN Label:

HDMI1

CN Type:

HDMI connector

CN Location:

See Figure 3-29

CN Pinouts:

See Table 3-30

The HDMI connectors can connect to HDMI devices.

Description

HDMI2_DATA2

GND

HDMI2_DATA2#

HDMI2_DATA1

GND

HDMI2_DATA1#

HDMI2_DATA0

GND

HDMI2_DATA0#

HDMI2_CLK

GND

HDMI2_CLK#

N/C

HDMI2_SCL

HDM2I_SDA

GND

+5V

HDMI2_HPD

Table 3-30: HDMI Connector Pinouts

Figure 3-29: HDMI Connector Pinout Locations
