4.4 M.2 Module Installation
To install an M.2 module, please follow the steps below.
Step 1: Locate the M.2 module slot. See Chapter 3.
Step 2: Remove the retention screw secured on the motherboard.
Step 3: Line up the notch on the module with the notch on the slot. Slide the M.2
module into the socket at an angle of about 20º (Figure 4-2).

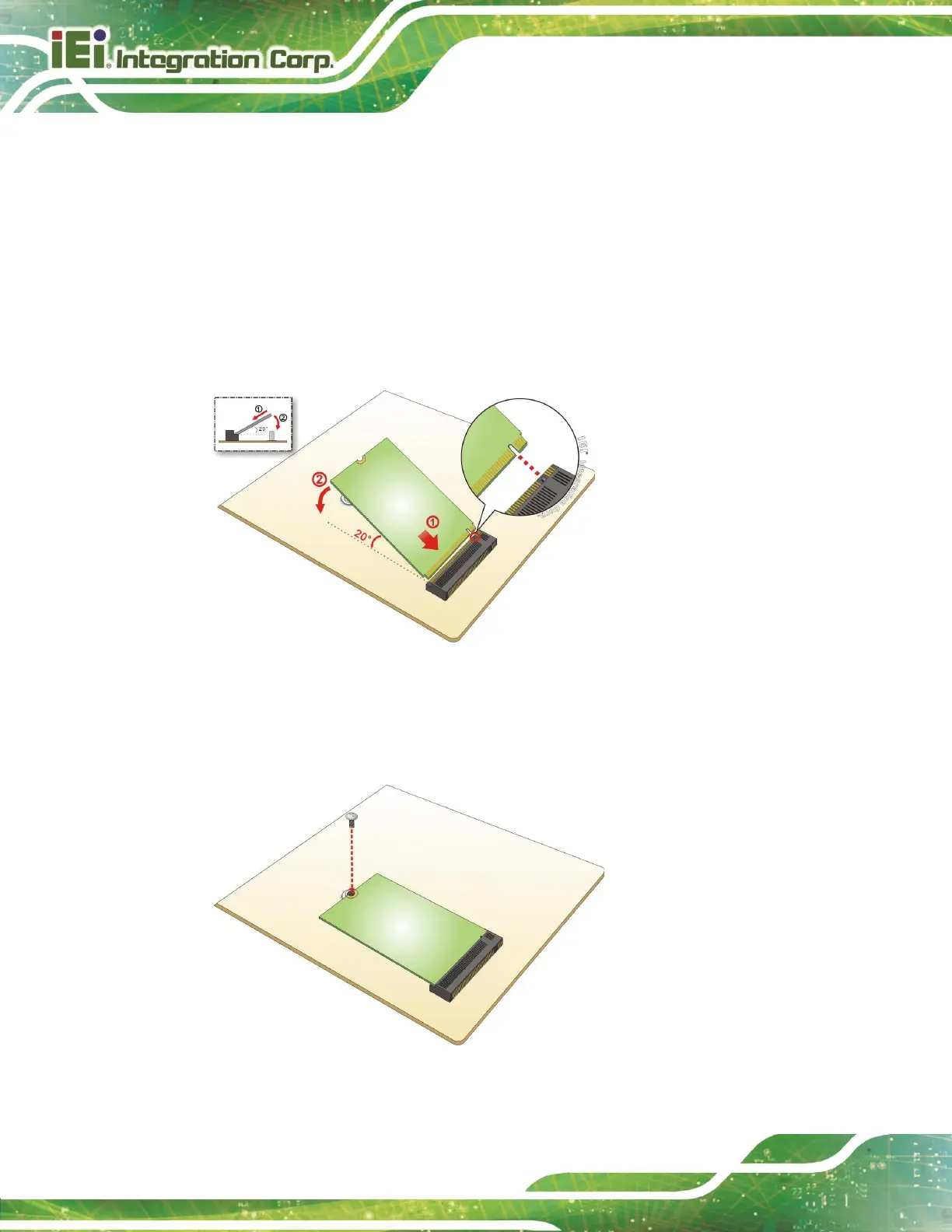

Figure 4-2: Inserting The M.2 Module Into The Slot At An Angle
Step 4: Secure the M.2 module with the previously removed retention screw (Figure
4-3).
Figure 4-3: Securing The M.2 Module
