WAFER-JL-N5105 SBC

Page 27

3.2.10 Power Button Connector

CN Label:

PWR_BTN1

CN Type:

2-pin wafer, p=2.00 mm

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-15

The power button connector is connected to a power switch on the system chassis to

enable users to turn the system on and off.

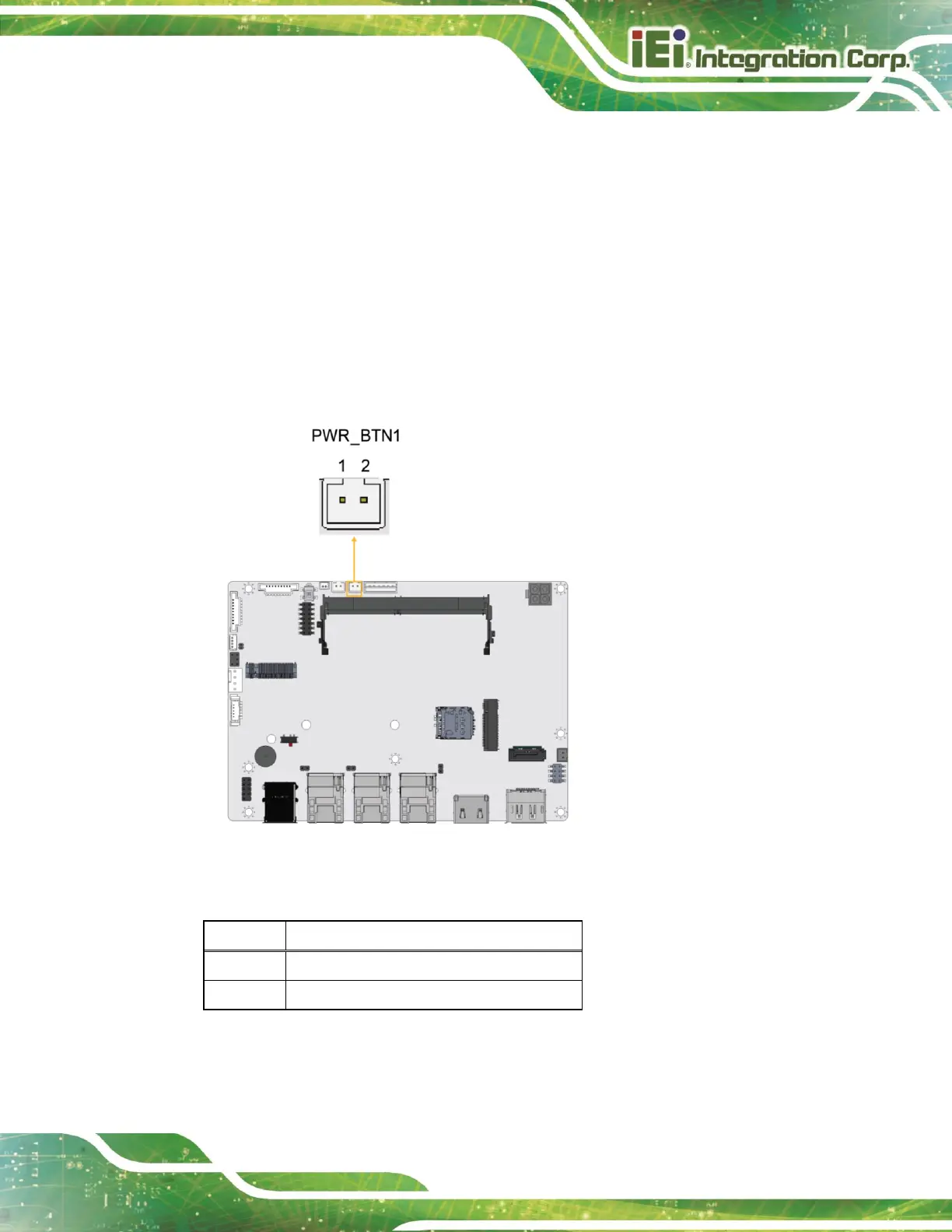

Figure 3-12: Power Button Connector Location

Description

PWR_BTN+

PWR_BTN-

Table 3-15: Power Button Connector Pinouts
