WAFER-JL-N5105 SBC

Page 23

3.2.7 Power LED & HDD LED Connector

CN Label:

F_PANEL1

CN Type:

6-pin wafer, p=2.00 mm

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10

The front panel connector connects to the power LED indicator and HDD LED indicator on

the system front panel.

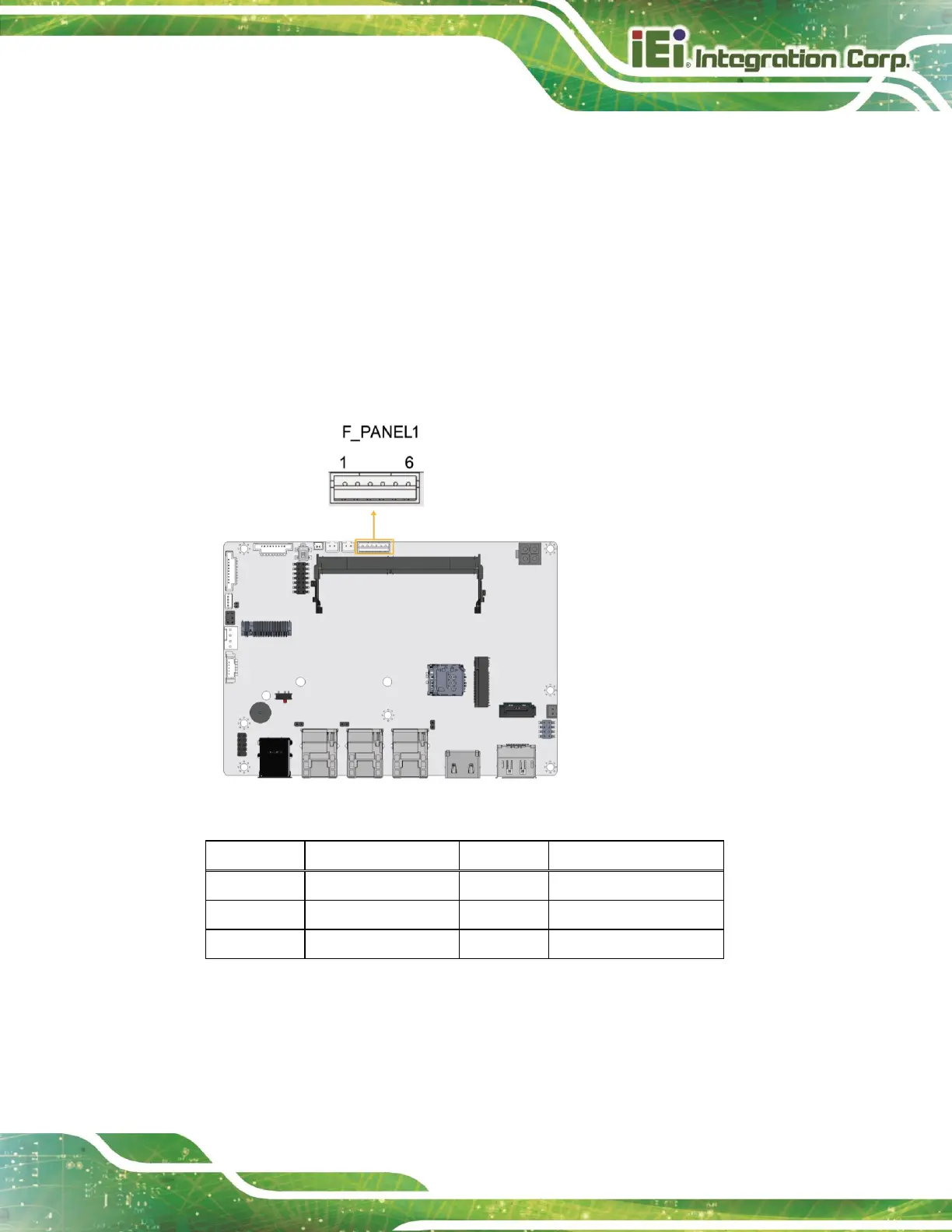

Figure 3-9: Power LED & HDD LED Connector Location

Description

VCC

GND

PWR_LED+

PWR_LED-

HDD_LED+

HDD_LED-

Table 3-10: Power LED & HDD LED Connector Pinouts
