WAFER-JL-N5105 SBC

Page 43

LED

Description

LED

Description

on: linked

blinking: data is being

sent/received

off: 100 Mb/s

orange: 1000 Mb/s

green: 2500 Mb/s

Table 3-27: LAN LED Pinouts

3.3.1 External USB 3.2 Gen 2x1 Type-A

CN Label:

USB1, USB2

CN Type:

USB 3.2 Gen 2 port Type-A

CN Location:

See 814HFigure 3-27

CN Pinouts:

See 815H Table 3-28

The WAFER-JL-N5105 has four external USB 3.2 Gen 2 ports. The USB connector can be

connected to a USB 2.0 or USB 3.2 device. The pinouts of USB 3.2 Gen 2 connectors are

shown below.

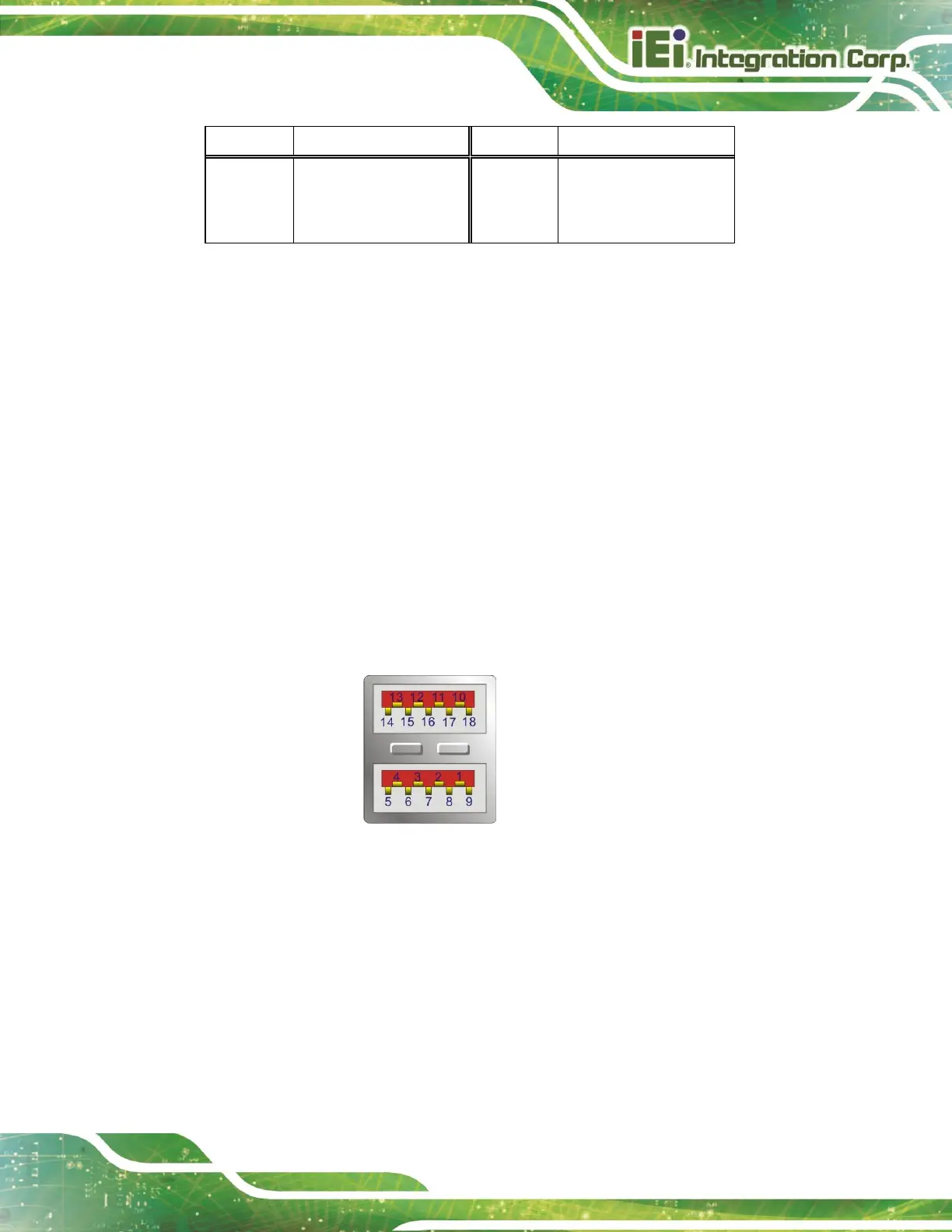

Figure 3-27: USB 3.2 Gen 2 Port Location
