WAFER-JL-N5105 SBC

Page 28

3.2.11 Reset Button Connector

CN Label:

RST_BTN1

CN Type:

2-pin wafer, p=2.00 mm

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-16

The reset button connector is connected to a reset switch on the system chassis to enable

users to reboot the system when the system is turned on.

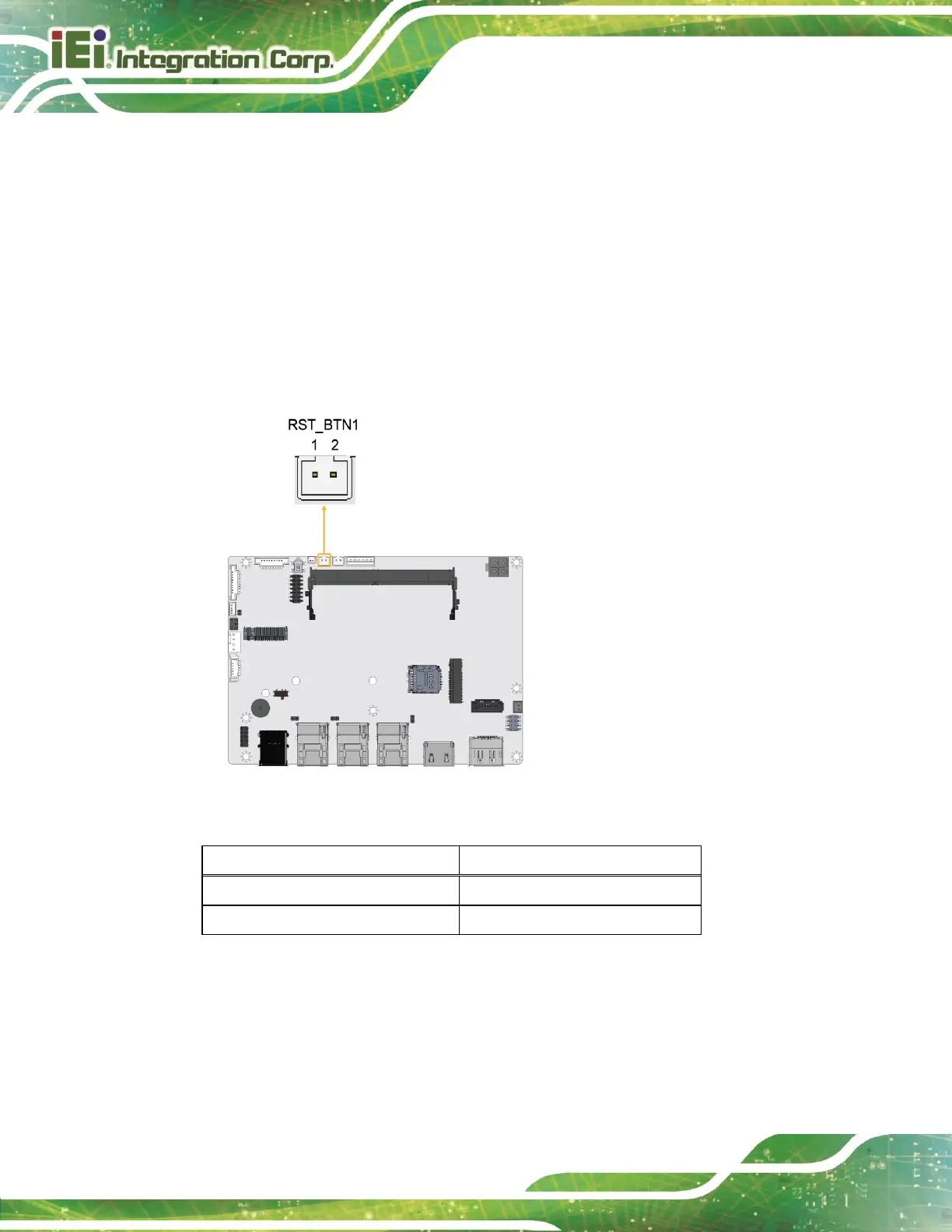

Figure 3-13: Reset Button Connector Location

Description

RESET+

RESET-

Table 3-16: Reset Button Connector Pinouts
