WAFER-JL-N5105 SBC

Page 19

3.2.3 Audio Connector

CN Label:

AUDIO1

CN Type:

10-pin header, p=2.00 mm

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

The audio connector is connected to external audio devices (AC-KIT-888S-R10) including

speakers and microphones for the input and output of audio signals to and from the system.

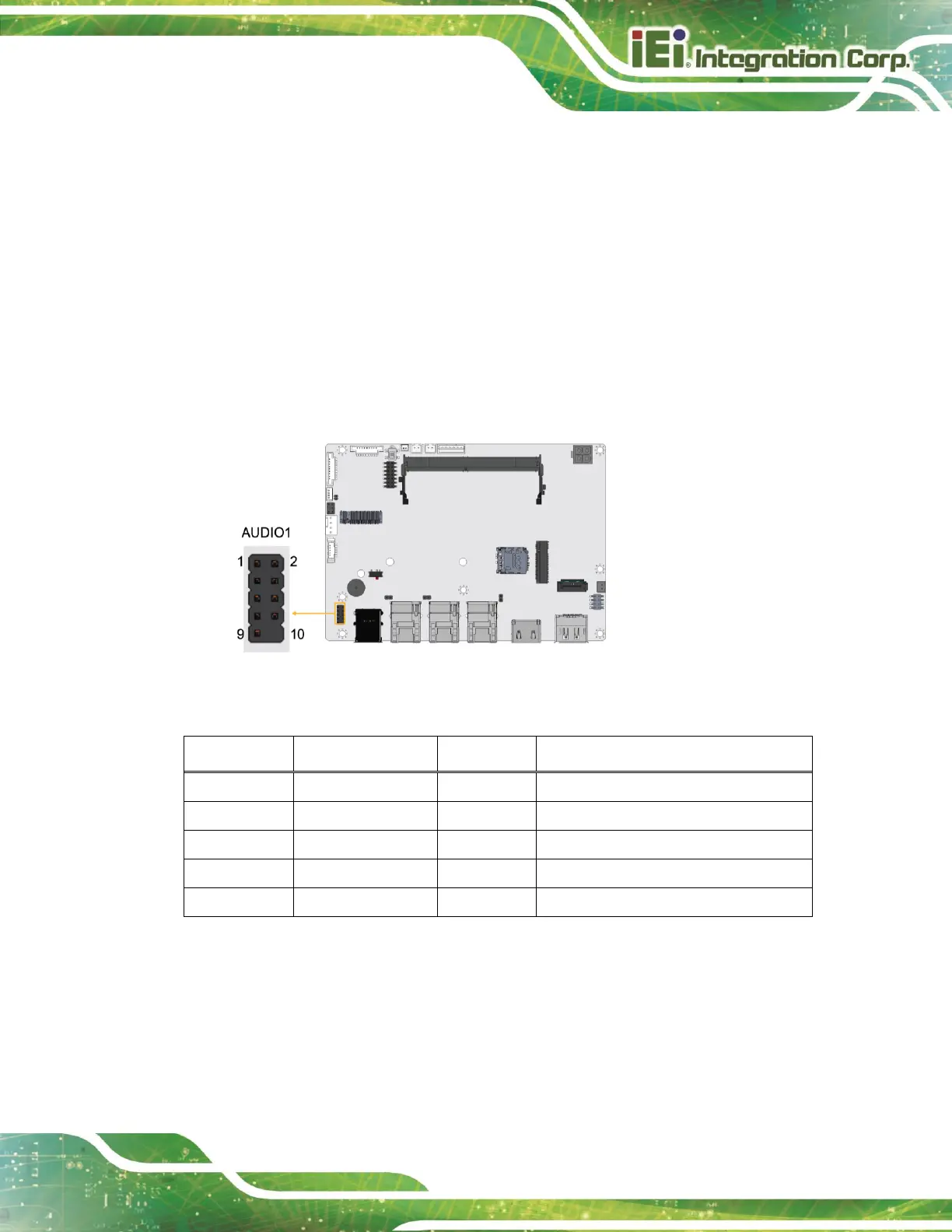

Figure 3-5: Audio Connector Location

Table 3-6: Audio Connector Pinouts

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

HDA_SYNC_R

HDA_BIT_CLK_R

HDA_SDOUT_R

HDA_PCBEEP_R

HDA_SDIN_R

HDA_RST#_R

P5V

GND

P12V

GND
