WAFER-JL-N5105 SBC

Page 33

3.2.16 SPI Flash Connector

CN Label:

JSPI1

CN Type:

6-pin wafer, p=1.25 mm

CN Location:

See Figure 3-18

CN Pinouts:

See Table 3-21

The 6-pin SPI Flash connector is used to flash the BIOS.

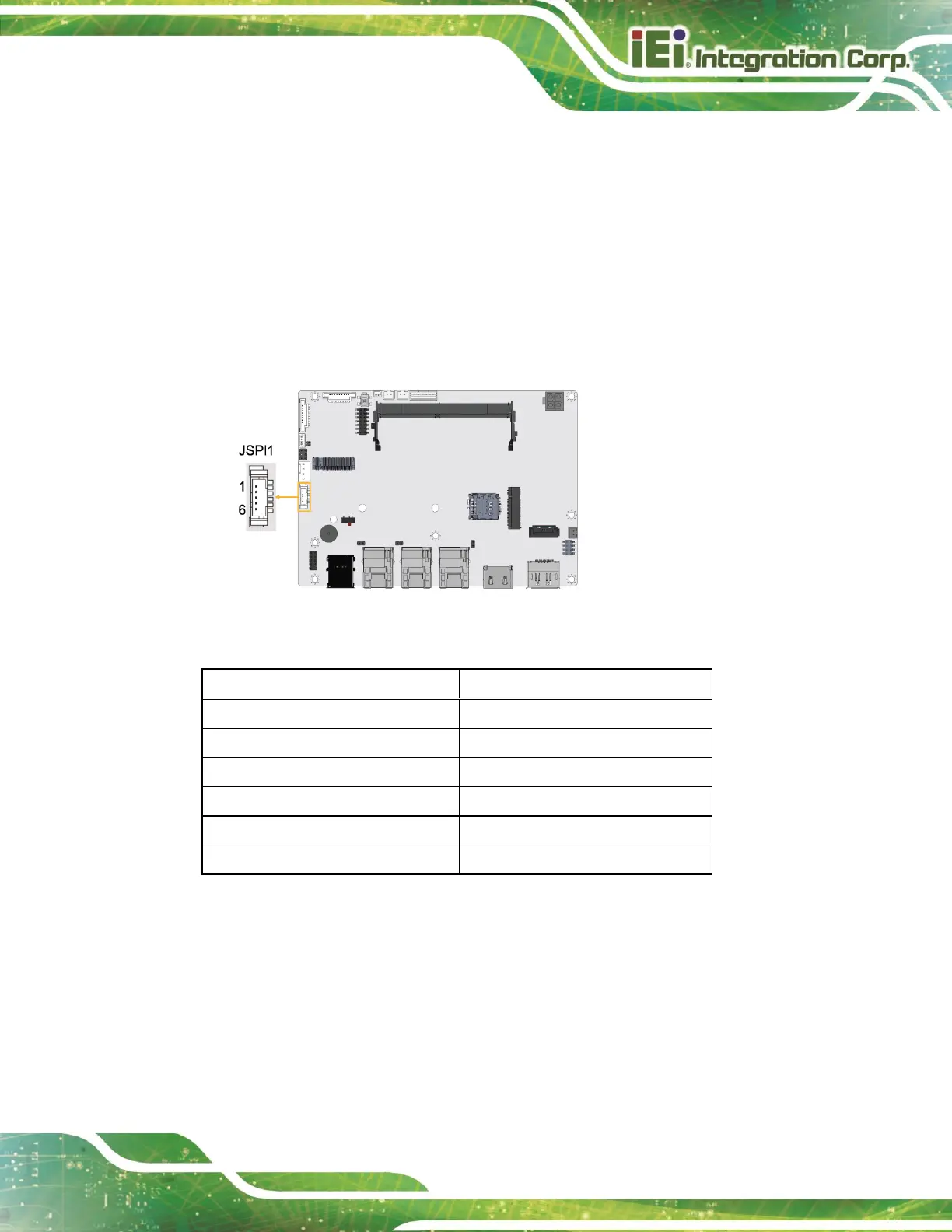

Figure 3-18: SPI Flash Connector Location

Description

+3.3V

SPI_CS#

SPI SO

SPI CLK

SPI SI

GND

Table 3-21: SPI Flash Connector Pinouts
