IEI Technology WAFER-JL-N5105 User Manual

WAFER-JL-N5105 SBC
Page 37
3.2.19 M.2 Slot, A-key
CN Label:
M2_A1
CN Type:
M.2 A-key slot
CN Location:
See Figure 3-21
CN Pinouts:
See Table 3-24
The M.2 slot is keyed in the A position and accepts 2230 size of M.2 modules. The M.2 slot
supports PCIe x2 and USB 2.0 signals.

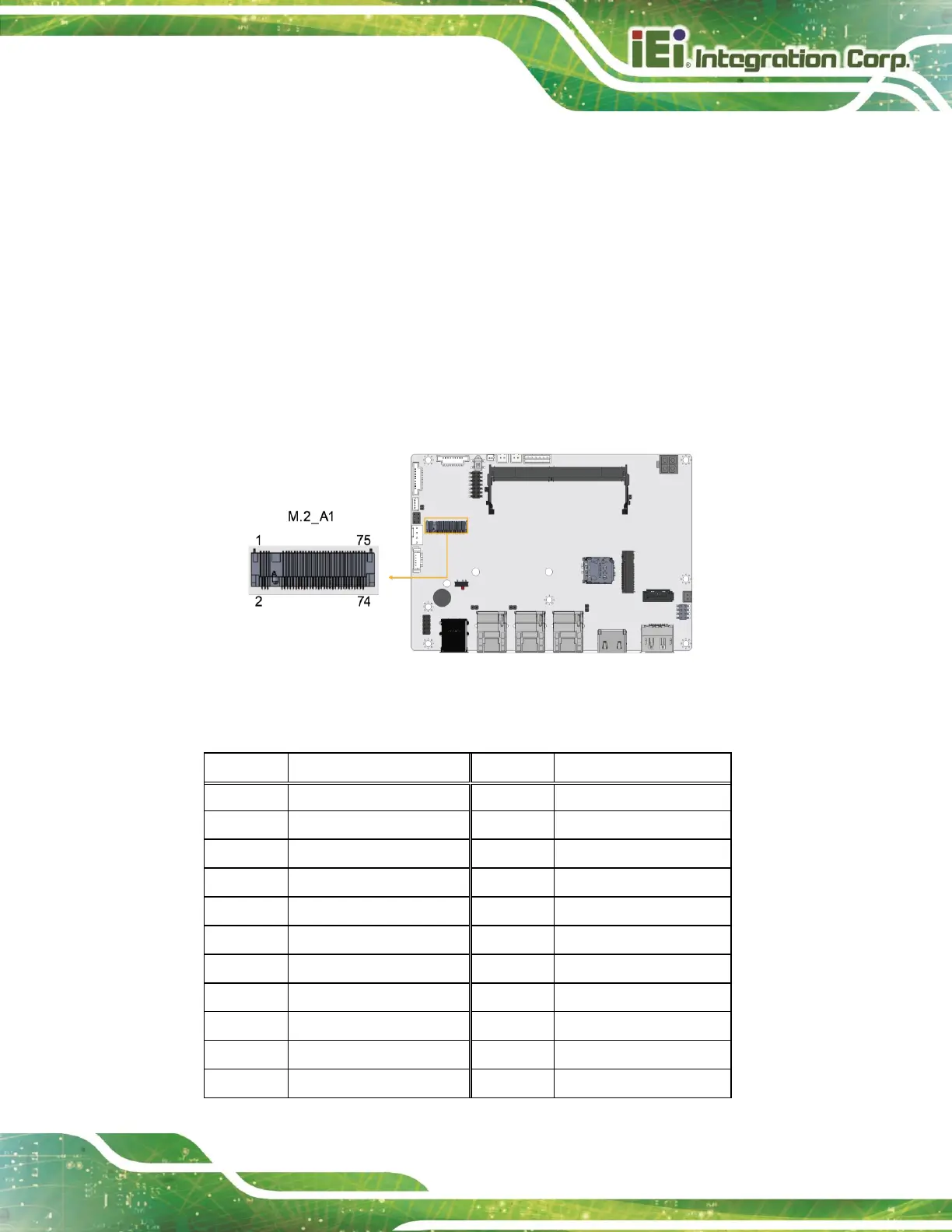

Figure 3-21: M.2 A-key Slot Location
Pin
Description
Pin
Description
1
GND
2
+V3.3A
3
USB+
4
+V3.3A
5
USB-
6
NC
7
GND
8
Module Key
9
Module Key
10
Module Key
11
Module Key
12
Module Key
13
Module Key
14
Module Key
15
Module Key
16
NC
17
NC
18
GND
19
NC
20
NC
21
NC
22
NC
