WAFER-JL-N5105 SBC

Page 35

3.2.18 M.2 Slot, B-key

CN Label:

M2_1

CN Type:

M.2 B-key slot

CN Location:

See 791HFigure 3-20

CN Pinouts:

See Table 3-23

The M.2 B key (3042/2280) slot with PCIe Gen3 x2 and USB 2.0 signal supports NVMe

storage or 5G module with SIM holder

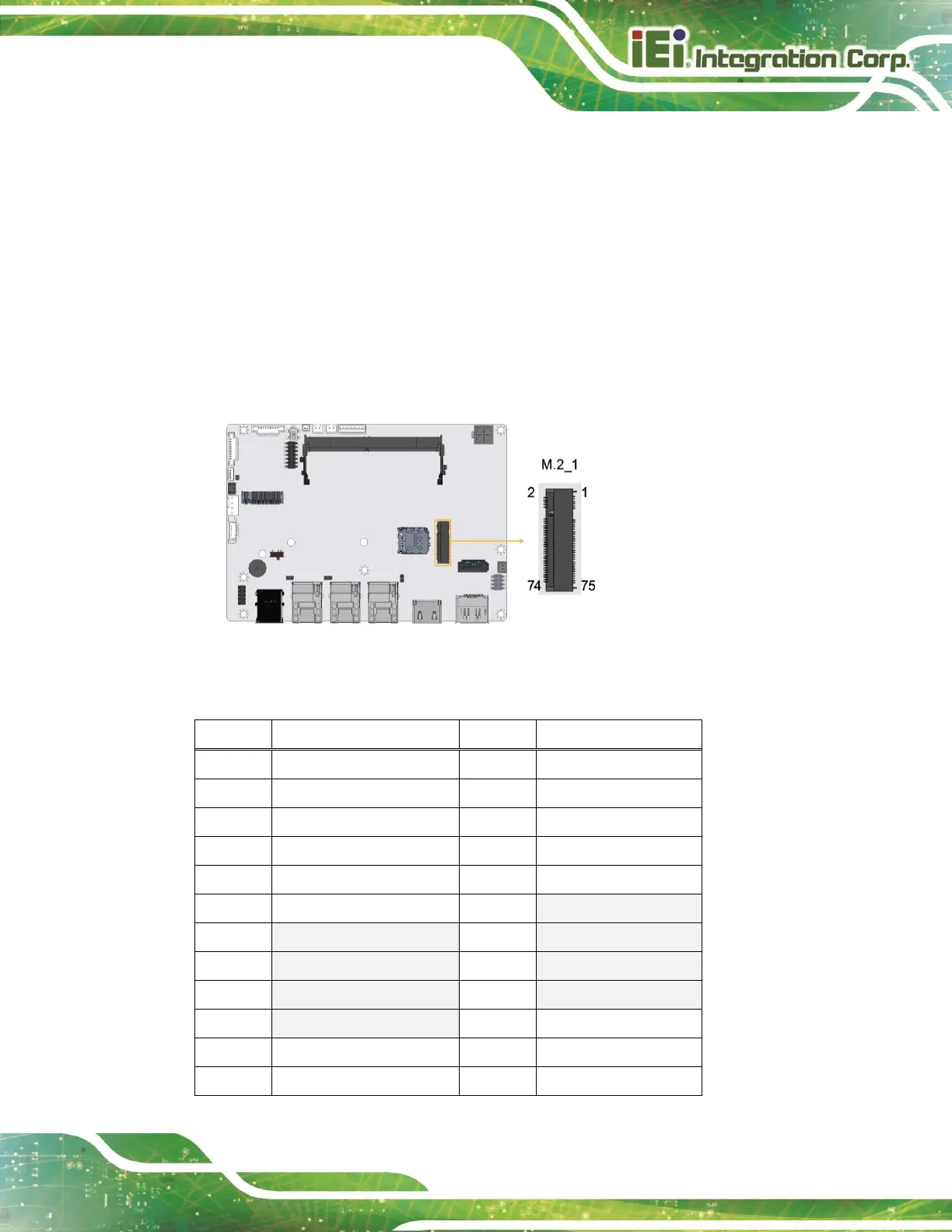

Figure 3-20: M.2 B key Slot Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

CONFIG_3

+3.3V

GND

+3.3V

GND

POWER_OFF

USB_D+

W_DISABLE

USB_D-

DAS/DSS#

GND

Module Key

N/C

CONFIG_0

N/C
