WAFER-JL-N5105 SBC

Page 32

3.2.15 SMBus/I

C Connector

CN Label:

I2C1

CN Type:

4-pin wafer, p=1.25 mm

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-20

The SMBus (System Management Bus) connector provides low-speed system

management communications.

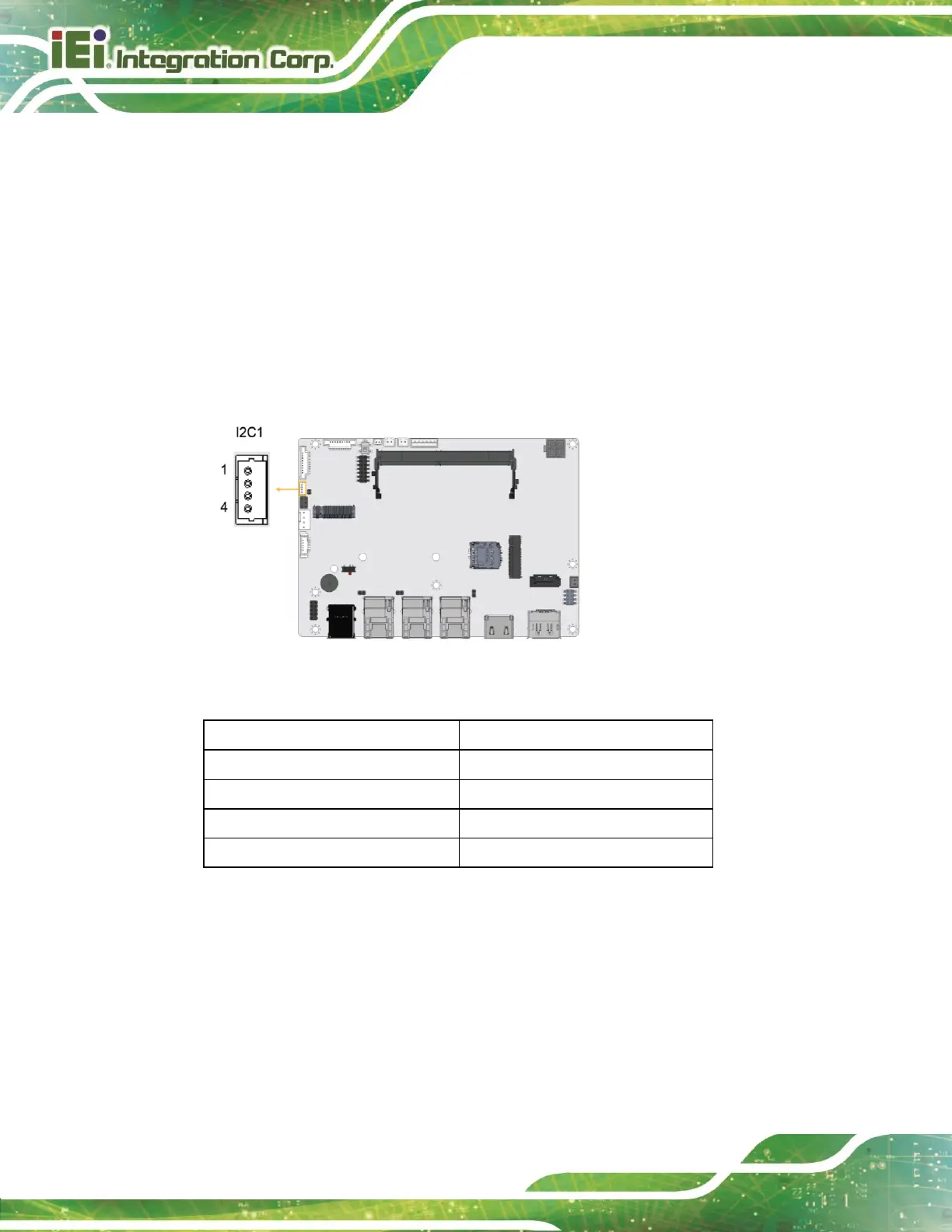

Figure 3-17: SMBus Connector Location

Description

GND

SMB DATA

SMB CLK

+5V

Table 3-20: SMBus Connector Pinouts
