Electrical connection
>
6.2 IO-Link ports
22684

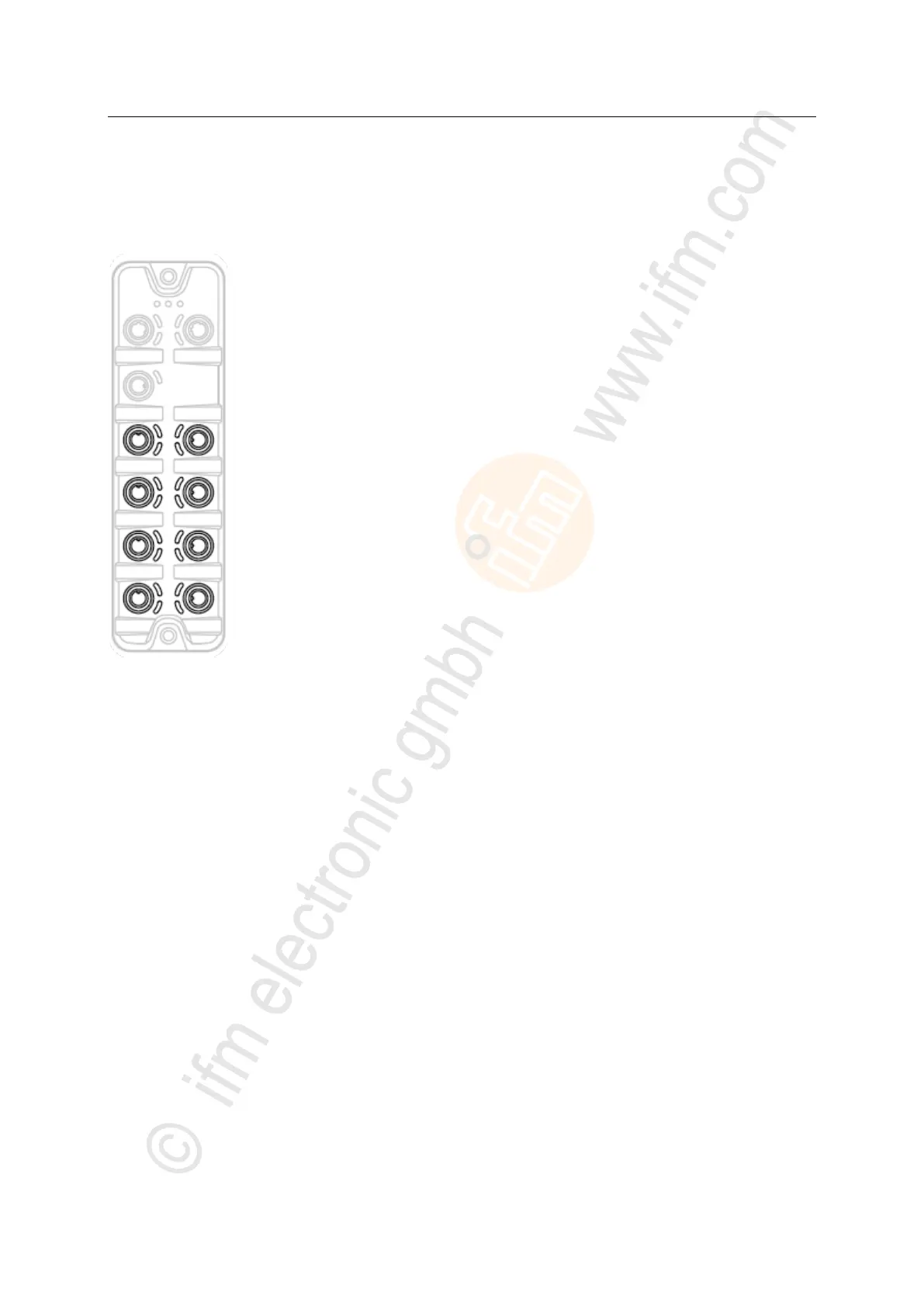

Ports X01...X08: For use as IO-Link port class A:
► Connect the connector of the IO-Link devices with the M12 sockets
X01 ... X08.
 Tightening torque: 0.6...0.8 Nm
 Maximum cable length per IO-Link interface: 20 m
► For the connection, use M12 connectors with protection rating IP 65
/ IP 67 or higher (e.g. EVC493).
Ports X01...X08: For use as IO-Link port class B:
► Connect the connector of the IO-Link devices via the adapter with
the M12 sockets X01 ... X08.
 Tightening torque: 0.6...0.8 Nm
► To connect the devices, use M12 connectors with protection rating
IP 65 / IP 67 or higher (e.g. EVC693).
► Cover the unused sockets with M12 protective caps (art. no.:
E73004).
 Tightening torque 0.6...0.8 Nm
>
6.2.1 Input circuit
18629
The inputs of the M12 sockets 8 (pin 2) provide a type 2 behaviour according to standard EN61131-2,
the connected electronics must be rated for this electrically.
