12.1.9 Mechanical data
22825
Mechanical data
Weight [g]
350
Materials
Housing: PA; socket: brass nickel-plated
>

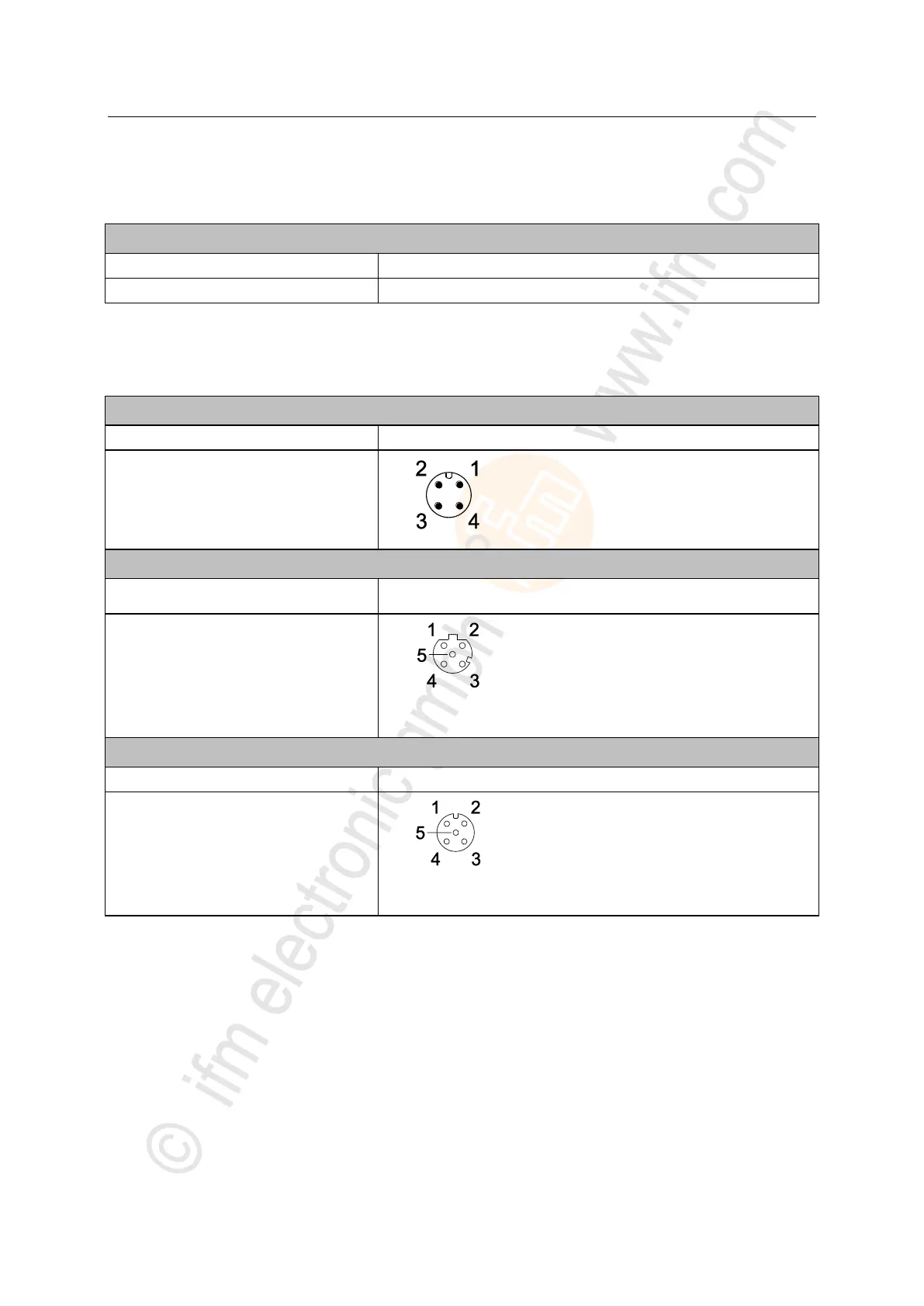

12.1.10 Electrical connection
22826
Voltage supply IN X31
Connector
M12
Wiring
1:
+ 24 V DC (US)
2:
-
3:
GND (US)
4:
-
Ethernet IN / OUT X21, X22
Connector
M12
Wiring
1:
TX +
2:
RX +
3:
TX -
4:
RX -
5:
-
Process connection IO-Link Ports Class A X01...X0<IOL_AnzPorts>
Connector
M12
Wiring
1:
+ 24 V DC (US)
2:
DI
3:
GND (US)
4:
C/Q IO-Link
